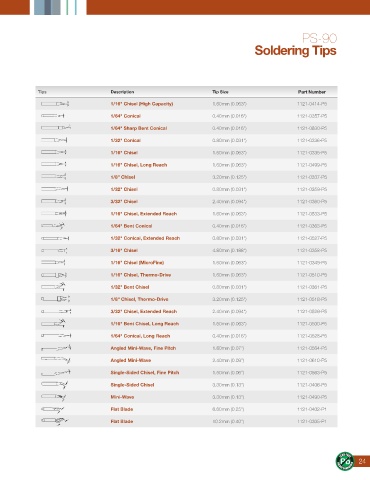

Page 25 - PACE Katalógus

PS-90

Soldering Tips

Tips Description Tip Size Part Number

1/16" Chisel (High Capacity) 1.60mm (0.063") 1121-0414-P5
1/64" Conical 0.40mm (0.016") 1121-0357-P5

1/64" Sharp Bent Conical 0.40mm (0.016") 1121-0830-P5
1/32" Conical 0.80mm (0.031") 1121-0336-P5

1/16" Chisel 1.60mm (0.063") 1121-0335-P5
1/16" Chisel, Long Reach 1.60mm (0.063") 1121-0499-P5

1/8" Chisel 3.20mm (0.125") 1121-0337-P5
1/32" Chisel 0.80mm (0.031") 1121-0359-P5

3/32" Chisel 2.40mm (0.094") 1121-0360-P5

1/16" Chisel, Extended Reach 1.60mm (0.063") 1121-0533-P5
1/64" Bent Conical 0.40mm (0.016") 1121-0363-P5
1/32" Conical, Extended Reach 0.80mm (0.031") 1121-0527-P5

3/16" Chisel 4.80mm (0.188") 1121-0358-P5

1/16" Chisel (MicroFine) 1.60mm (0.063") 1121-0349-P5
1/16" Chisel, Thermo-Drive 1.60mm (0.063") 1121-0510-P5

1/32" Bent Chisel 0.80mm (0.031") 1121-0361-P5
1/8" Chisel, Thermo-Drive 3.20mm (0.125") 1121-0518-P5

3/32" Chisel, Extended Reach 2.40mm (0.094") 1121-0529-P5
1/16" Bent Chisel, Long Reach 1.60mm (0.063") 1121-0500-P5

1/64" Conical, Long Reach 0.40mm (0.016") 1121-0528-P5
Angled Mini-Wave, Fine Pitch 1.80mm (0.07") 1121-0564-P5

Angled Mini-Wave 2.40mm (0.09") 1121-0610-P5
Single-Sided Chisel, Fine Pitch 1.50mm (0.06") 1121-0563-P5

Single-Sided Chisel 3.30mm (0.13") 1121-0406-P5
Mini-Wave 3.30mm (0.13") 1121-0490-P5

Flat Blade 6.60mm (0.25") 1121-0402-P1
Flat Blade 10.2mm (0.40") 1121-0305-P1

24
