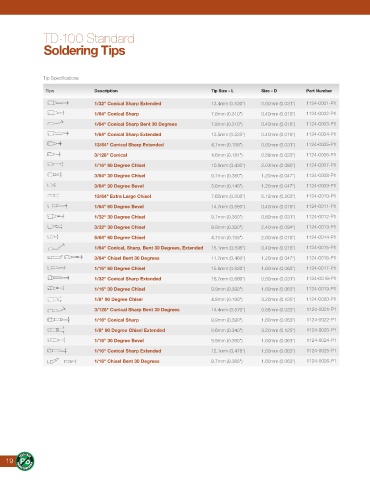

TD-100 Standard
Soldering Tips
Tip Specifications
Tips Description Tip Size - L Size - D Part Number
1/32" Conical Sharp Extended 13.4mm (0.530") 0.80mm (0.031") 1124-0001-P1
1/64" Conical Sharp 7.8mm (0.310") 0.40mm (0.016") 1124-0002-P1
1/64" Conical Sharp Bent 30 Degrees 7.8mm (0.310") 0.40mm (0.016") 1124-0003-P1
1/64" Conical Sharp Extended 13.5mm (0.535") 0.40mm (0.016") 1124-0004-P1
13/64" Conical Sharp Extended 4.7mm (0.188") 0.80mm (0.031") 1124-0005-P1
3/128" Conical 4.6mm (0.184") 0.58mm (0.023") 1124-0006-P1
1/16" 90 Degree Chisel 10.9mm (0.430") 2.03mm (0.080") 1124-0007-P1
3/64" 30 Degree Chisel 9.7mm (0.380") 1.20mm (0.047") 1124-0008-P1
3/64" 30 Degree Bevel 3.6mm (0.140") 1.20mm (0.047") 1124-0009-P1
13/64" Extra Large Chisel 7.62mm (0.300") 5.15mm (0.203") 1124-0010-P1
1/64" 60 Degree Bevel 14.7mm (0.580") 0.40mm (0.016") 1124-0011-P1
1/32" 30 Degree Chisel 9.1mm (0.360") 0.80mm (0.031") 1124-0012-P1
3/32" 30 Degree Chisel 9.9mm (0.390") 2.40mm (0.094") 1124-0013-P1
5/64" 60 Degree Chisel 4.7mm (0.185") 2.00mm (0.078") 1124-0014-P1
1/64" Conical, Sharp, Bent 30 Degrees, Extended 15.1mm (0.595") 0.40mm (0.016") 1124-0015-P1
3/64" Chisel Bent 30 Degrees 11.7mm (0.460") 1.20mm (0.047") 1124-0016-P1
1/16" 60 Degree Chisel 15.8mm (0.620") 1.60mm (0.063") 1124-0017-P1
1/32" Conical Sharp Extended 16.7mm (0.660") 0.80mm (0.031") 1124-0018-P1
1/16" 30 Degree Chisel 9.9mm (0.390") 1.60mm (0.063") 1124-0019-P1
1/8" 90 Degree Chisel 4.8mm (0.190") 3.20mm (0.125") 1124-0020-P1
3/128" Conical Sharp Bent 30 Degrees 14.4mm (0.570") 0.58mm (0.023") 1124-0021-P1
1/16" Conical Sharp 9.9mm (0.390") 1.60mm (0.063") 1124-0022-P1
1/8" 90 Degree Chisel Extended 8.6mm (0.340") 3.20mm (0.125") 1124-0023-P1
1/16" 30 Degree Bevel 9.9mm (0.390") 1.60mm (0.063") 1124-0024-P1
1/16" Conical Sharp Extended 12.1mm (0.478") 1.60mm (0.063") 1124-0025-P1
1/16" Chisel Bent 30 Degrees 9.7mm (0.385") 1.60mm (0.063") 1124-0026-P1
