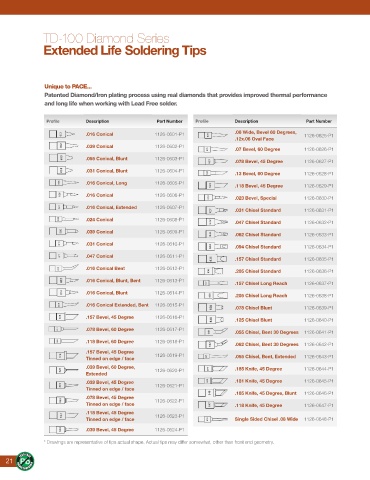

TD-100 Diamond Series

Extended Life Soldering Tips

Unique to PACE...
Patented Diamond/Iron plating process using real diamonds that provides improved thermal performance
and long life when working with Lead Free solder.

Profile Description Part Number Profile Description Part Number

.016 Conical 1126-0601-P1 .06 Wide, Bevel 60 Degrees, 1126-0625-P1
.12x.06 Oval Face
.039 Conical 1126-0602-P1
.07 Bevel, 60 Degree 1126-0626-P1
.055 Conical, Blunt 1126-0603-P1
.078 Bevel, 45 Degree 1126-0627-P1
.031 Conical, Blunt 1126-0604-P1
.13 Bevel, 60 Degree 1126-0628-P1
.016 Conical, Long 1126-0605-P1
.118 Bevel, 45 Degree 1126-0629-P1
.016 Conical 1126-0606-P1
.023 Bevel, Special 1126-0630-P1
.016 Conical, Extended 1126-0607-P1
.031 Chisel Standard 1126-0631-P1
.024 Conical 1126-0608-P1
.047 Chisel Standard 1126-0632-P1
.039 Conical 1126-0609-P1
.062 Chisel Standard 1126-0633-P1
.031 Conical 1126-0610-P1
.094 Chisel Standard 1126-0634-P1
.047 Conical 1126-0611-P1
.157 Chisel Standard 1126-0635-P1
.016 Conical Bent 1126-0612-P1
.205 Chisel Standard 1126-0636-P1
.016 Conical, Blunt, Bent 1126-0613-P1
.157 Chisel Long Reach 1126-0637-P1
.016 Conical, Blunt 1126-0614-P1
.205 Chisel Long Reach 1126-0638-P1
.016 Conical Extended, Bent 1126-0615-P1
.078 Chisel Blunt 1126-0639-P1
.157 Bevel, 45 Degree 1126-0616-P1
.125 Chisel Blunt 1126-0640-P1
.078 Bevel, 60 Degree 1126-0617-P1
.055 Chisel, Bent 30 Degrees 1126-0641-P1
.118 Bevel, 60 Degree 1126-0618-P1
.062 Chisel, Bent 30 Degrees 1126-0642-P1
.157 Bevel, 45 Degree 1126-0619-P1
Tinned on edge / face .055 Chisel, Bent, Extended 1126-0643-P1
.039 Bevel, 60 Degree, 1126-0620-P1 .185 Knife, 45 Degree 1126-0644-P1
Extended
.039 Bevel, 45 Degree 1126-0621-P1 .181 Knife, 45 Degree 1126-0645-P1
Tinned on edge / face
.185 Knife, 45 Degree, Blunt 1126-0646-P1
.078 Bevel, 45 Degree
Tinned on edge / face 1126-0622-P1 .118 Knife, 45 Degree 1126-0647-P1
.118 Bevel, 45 Degree
Tinned on edge / face 1126-0623-P1 Single Sided Chisel .08 Wide 1126-0648-P1
.039 Bevel, 45 Degree 1126-0624-P1

* Drawings are representative of tips actual shape. Actual tips may differ somewhat, other than front end geometry.
