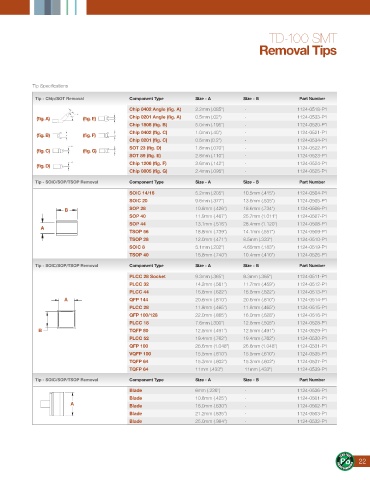

TD-100 SMT

Removal Tips

Tip Specifications

Tip - Chip/SOT Removal Component Type Size - A Size - B Part Number
Chip 0402 Angle (fig. A) 2.2mm (.085") - 1124-0518-P1
(fig. A) (fig. E) Chip 0201 Angle (fig. A) 0.5mm (.02") - 1124-0533-P1
Chip 1808 (fig. B) 5.0mm (.195") - 1124-0520-P1
Chip 0402 (fig. C) 1.0mm (.40") - 1124-0521-P1
(fig. B) (fig. F)
Chip 0201 (fig. C) 0.5mm (0.2") - 1124-0534-P1
SOT 23 (fig. D) 1.8mm (.070") - 1124-0522-P1
(fig. C) (fig. G)
SOT 89 (fig. E) 2.8mm (.110") - 1124-0523-P1
Chip 1206 (fig. F) 3.6mm (.142") - 1124-0524-P1
(fig. D)
Chip 0805 (fig. G) 2.4mm (.095") - 1124-0525-P1
Tip - SOIC/SOP/TSOP Removal Component Type Size - A Size - B Part Number
SOIC 14/16 5.2mm (.205") 10.5mm (.415") 1124-0504-P1
SOIC 20 9.6mm (.377") 13.6mm (.535") 1124-0505-P1
B SOP 28 10.8mm (.426") 18.6mm (.734") 1124-0506-P1
SOP 40 11.9mm (.467") 25.7mm (1.011") 1124-0507-P1
SOP 44 13.1mm (.516") 28.4mm (1.120") 1124-0508-P1
A
TSOP 56 18.8mm (.739") 14.1mm (.557") 1124-0509-P1
TSOP 28 12.0mm (.471") 8.5mm (.333") 1124-0510-P1
SOIC 8 5.1mm (.202") 4.65mm (.183") 1124-0519-P1
TSOP 40 18.8mm (.740") 10.4mm (.410") 1124-0526-P1
Tip - SOIC/SOP/TSOP Removal Component Type Size - A Size - B Part Number
PLCC 28 Socket 9.3mm (.365") 9.3mm (.365") 1124-0511-P1
PLCC 32 14.2mm (.561") 11.7mm (.459") 1124-0512-P1
PLCC 44 16.8mm (.622") 16.8mm (.622") 1124-0513-P1
A QFP 144 20.6mm (.810") 20.6mm (.810") 1124-0514-P1
PLCC 28 11.8mm (.465") 11.8mm (.465") 1124-0515-P1
QFP 100/128 22.0mm (.865") 16.0mm (.628") 1124-0516-P1
PLCC 18 7.6mm (.300") 12.8mm (.505") 1124-0528-P1
B TQFP 80 12.5mm (.491") 12.5mm (.491") 1124-0529-P1
PLCC 52 19.4mm (.762") 19.4mm (.762") 1124-0530-P1
QFP 100 26.6mm (1.048") 26.6mm (1.048") 1124-0531-P1
VQFP 100 15.5mm (.610") 15.5mm (.610") 1124-0535-P1
TQFP 64 15.3mm (.602") 15.3mm (.602") 1124-0537-P1
TQFP 64 11mm (.433") 11mm (.433") 1124-0539-P1
Tip - SOIC/SOP/TSOP Removal Component Type Size - A Size - B Part Number
Blade 6mm (.236") - 1124-0536-P1
Blade 10.8mm (.425") - 1124-0501-P1
A Blade 16.0mm (.630") - 1124-0502-P1
Blade 21.2mm (.835") - 1124-0503-P1
Blade 25.0mm (.984") - 1124-0532-P1
