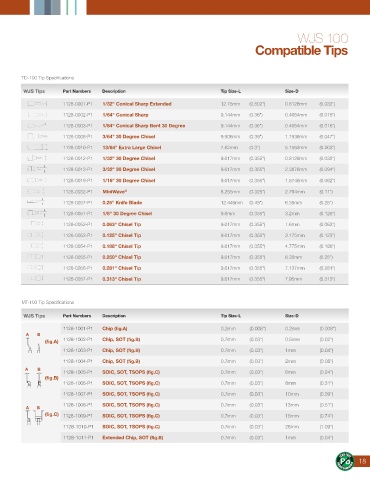

WJS 100

Compatible Tips

TD-100 Tip Specifications

WJS Tips Part Numbers Description Tip Size-L Size-D

1128-0001-P1 1/32" Conical Sharp Extended 12.75mm (0.502") 0.8128mm (0.032")
1128-0002-P1 1/64" Conical Sharp 9.144mm (0.36") 0.4064mm (0.016")
1128-0003-P1 1/64" Conical Sharp Bent 30 Degree 9.144mm (0.36") 0.4064mm (0.016")

1128-0008-P1 3/64" 30 Degree Chisel 9.906mm (0.39") 1.1938mm (0.047")
1128-0010-P1 13/64" Extra Large Chisel 7.62mm (0.3") 5.1562mm (0.203")
1128-0012-P1 1/32" 30 Degree Chisel 9.017mm (0.355") 0.8128mm (0.032")
1128-0013-P1 3/32" 30 Degree Chisel 9.017mm (0.355") 2.3876mm (0.094")

1128-0019-P1 1/16" 30 Degree Chisel 9.017mm (0.355") 1.5748mm (0.062")
1128-0032-P1 MiniWave ® 8.255mm (0.325") 2.794mm (0.11")
1128-0037-P1 0.25" Knife Blade 12.446mm (0.49") 6.35mm (0.25")
1128-0051-P1 1/8" 30 Degree Chisel 9.0mm (0.355") 3.2mm (0.125")

1128-0052-P1 0.063" Chisel Tip 9.017mm (0.355") 1.6mm (0.063")
1128-0053-P1 0.125" Chisel Tip 9.017mm (0.355") 3.175mm (0.125")
1128-0054-P1 0.188" Chisel Tip 9.017mm (0.355") 4.775mm (0.188")
1128-0055-P1 0.250" Chisel Tip 9.017mm (0.355") 6.35mm (0.25")

1128-0056-P1 0.281" Chisel Tip 9.017mm (0.355") 7.137mm (0.281")
1128-0057-P1 0.313" Chisel Tip 9.017mm (0.355") 7.95mm (0.313")

MT-100 Tip Specifications
WJS Tips Part Numbers Description Tip Size-L Size-D

1128-1001-P1 Chip (fig.A) 0.2mm (0.008") 0.2mm (0.008")
A B
(fig.A) 1128-1002-P1 Chip, SOT (fig.B) 0.7mm (0.03") 0.5mm (0.02")
1128-1003-P1 Chip, SOT (fig.B) 0.7mm (0.03") 1mm (0.04")
1128-1004-P1 Chip, SOT (fig.B) 0.7mm (0.03") 2mm (0.08")
A B
1128-1005-P1 SOIC, SOT, TSOPS (fig.C) 0.7mm (0.03") 6mm (0.24")
(fig.B)
1128-1006-P1 SOIC, SOT, TSOPS (fig.C) 0.7mm (0.03") 8mm (0.31")
1128-1007-P1 SOIC, SOT, TSOPS (fig.C) 0.7mm (0.03") 10mm (0.39")
1128-1008-P1 SOIC, SOT, TSOPS (fig.C) 0.7mm (0.03") 13mm (0.51")
A B
(fig.C) 1128-1009-P1 SOIC, SOT, TSOPS (fig.C) 0.7mm (0.03") 18mm (0.74")
1128-1010-P1 SOIC, SOT, TSOPS (fig.C) 0.7mm (0.03") 28mm (1.09")

1128-1011-P1 Extended Chip, SOT (fig.B) 0.7mm (0.03") 1mm (0.04")

18
