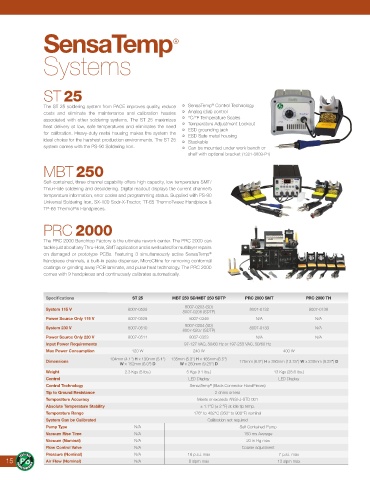

Page 16 - PACE Katalógus

SensaTemp
®

Systems

ST 25

The ST 25 soldering system from PACE improves quality, reduce • SensaTemp Control Technology
®
costs and eliminate the maintenance and calibration hassles • Analog (dial) control
associated with other soldering systems. The ST 25 maximizes • °C/°F Temperature Scales
heat delivery at low, safe temperatures and eliminates the need • Temperature Adjustment Lockout
• ESD grounding jack
for calibration. Heavy-duty metal housing makes the system the • ESD Safe metal housing
ideal choice for the harshest production environments. The ST 25 • Stackable
system comes with the PS-90 Soldering Iron. • Can be mounted under work bench or
shelf with optional bracket (1321-0609-P1)

MBT 250

Self-contained, three channel capability offers high capacity, low temperature SMT/
Thru-Hole soldering and desoldering. Digital readout displays the current channel’s
temperature information, error codes and programming status. Supplied with PS-90
Universal Soldering Iron, SX-100 Sodr-X-Tractor, TT-65 ThermoTweez Handpiece &
TP-65 ThermoPik Handpieces.

PRC 2000

The PRC 2000 Benchtop Factory is the ultimate rework center. The PRC 2000 can
tackle just about any Thru-Hole, SMT application and is well suited for multilayer repairs
on damaged or prototype PCBs. Featuring 3 simultaneously active SensaTemp
®
handpiece channels, a built-in paste dispenser, MicroChine for removing conformal
coatings or grinding away PCB laminate, and pulse heat technology. The PRC 2000
comes with 9 handpieces and continuously calibrates automatically.

Specifications ST 25 MBT 250 SD/MBT 250 SDTP PRC 2000 SMT PRC 2000 TH
8007-0203 (SD)
System 115 V 8007-0528 8007-0132 8007-0138
8007-0206 (SDTP)
Power Source Only 115 V 8007-0529 8007-0349 N/A N/A
8007-0204 (SD)
System 230 V 8007-0510 8007-0133 N/A
8007-0207 (SDTP)
Power Source Only 230 V 8007-0511 8007-0353 N/A N/A
Input Power Requirements 97-127 VAC, 50/60 Hz or 197-253 VAC, 50/60 Hz
Max Power Consumption 120 W 240 W 400 W
104mm (4.1") H x 130mm (5.1") 135mm (5.3") H x 165mm (6.5")
Dimensions 175mm (6.9") H x 350mm (13.75") W x 230mm (9.25") D
W x 152mm (6.0") D W x 260mm (9.25") D
Weight 2.3 Kgs (5 lbs.) 5 Kgs (11 lbs.) 13 Kgs (28.6 lbs.)
Control LED Display LED Display
Control Technology SensaTemp (Black Connector HandPieces)
®
Tip to Ground Resistance 2 ohms or less
Temperature Accuracy Meets or exceeds ANSI-J-STD 001
Absolute Temperature Stability ± 1.1°C (± 2 °F) at idle tip temp.
Temperature Range 176° to 482°C (350° to 900°F) nominal
System Can be Calibrated Calibration not required
Pump Type N/A Self Contained Pump
Vacuum Rise Time N/A 150 ms Average
Vacuum (Nominal) N/A 20 in Hg max
Flow Control Valve N/A Coarse adjustment
Pressure (Nominal) N/A 18 p.s.i. max 7 p.s.i. max
15 Air Flow (Nominal) N/A 8 slpm max 13 slpm max
