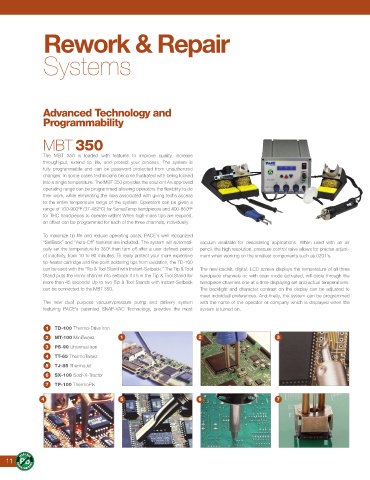

Page 12 - PACE Katalógus

Rework & Repair

Systems

Advanced Technology and
Programmability

MBT 350

The MBT 350 is loaded with features to improve quality, increase
through-put, extend tip life, and protect your process. The system is
fully programmable and can be password protected from unauthorized
changes. In some cases technicians become frustrated with being locked
into a single temperature. The MBT 350 provides the solution! An approved
operating range can be programmed allowing operators the flexibility to do
their work, while eliminating the risks associated with giving techs access
to the entire temperature range of the system. Operators can be given a
range of 100-900ºF (37-482ºC) for SensaTemp handpieces and 400-850ºF
for THC handpieces to operate within! When high-mass tips are required,
an offset can be programmed for each of the three channels, individually.

To maximize tip life and reduce operating costs, PACE's well recognized
“SetBack” and “Auto-Off” features are included. The system will automati- vacuum available for desoldering applications. When used with an air
cally set the temperature to 350º then turn off after a user defined period pencil, the high resolution, pressure control valve allows for precise adjust-
of inactivity, from 10 to 90 minutes. To really protect your more expensive ment when working on the smallest components such as 0201’s.
tip-heater cartridge and fine point soldering tips from oxidation, the TD-100
can be used with the “Tip & Tool Stand with Instant-Setback.” The Tip & Tool The new backlit, digital, LCD screen displays the temperature of all three
Stand puts the iron's channel into setback if it’s in the Tip & Tool Stand for handpiece channels or, with scan mode activated, will cycle through the
more than 45 seconds! Up to two Tip & Tool Stands with Instant-Setback handpiece channels one at a time displaying set and actual temperatures.
can be connected to the MBT 350. The backlight and character contrast on the display can be adjusted to
meet individual preferences. And finally, the system can be programmed
The new dual purpose vacuum/pressure pump and delivery system with the name of the operator or company which is displayed when the
featuring PACE's patented SNAP-VAC Technology, provides the most system is turned on.

1 TD-100 Thermo-Drive Iron
2 MT-100 MiniTweez 1 2 3
3 PS-90 Universal Iron
4 TT-65 ThermoTweez
5 TJ-85 ThermoJet
6 SX-100 Sodr-X-Tractor
7 TP-100 ThermoPik

4 5 6 7
