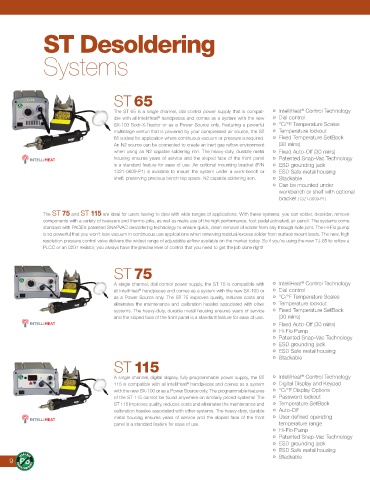

ST Desoldering

Systems

ST 65

The ST 65 is a single channel, dial control power supply that is compat- • IntelliHeat Control Technology
®
ible with all IntelliHeat handpieces and comes as a system with the new • Dial control
®
SX-100 Sodr-X-Tractor or as a Power Source only. Featuring a powerful • °C/°F Temperature Scales
multistage venturi that is powered by your compressed air source, the ST • Temperature lockout
65 is ideal for application where continuous vacuum or pressure is required. • Fixed Temperature SetBack
An N2 source can be connected to create an inert gas reflow environment (30 mins)
when using an N2 capable soldering iron. The heavy-duty, durable metal • Fixed Auto-Off (30 mins)
housing ensures years of service and the sloped face of the front panel • Patented Snap-Vac Technology
is a standard feature for ease of use. An optional mounting bracket (P/N • ESD grounding jack
1321-0609-P1) is available to mount the system under a work-bench or • ESD Safe metal housing
shelf, preserving precious bench top space. N2 capable soldering iron. • Stackable
• Can be mounted under
workbench or shelf with optional
bracket (1321-0609-P1)

The ST 75 and ST 115 are ideal for users having to deal with wide ranges of applications. With these systems, you can solder, desolder, remove
components with a variety of tweezers and thermo-piks, as well as make use of the high performance, foot pedal activated, air pencil. The systems come
standard with PACE’s patented SNAPVAC desoldering technology to ensure quick, clean removal of solder from any through-hole joint. The Hi-Flo pump
is so powerful that you won’t lose vacuum in continuous use applications when removing residual/excess solder from surface mount leads. The new, high
resolution pressure control valve delivers the widest range of adjustable airflow available on the market today. So if you’re using the new TJ-85 to reflow a
PLCC or an 0201 resistor, you always have the precise level of control that you need to get the job done right!

ST 75

A single channel, dial control power supply, the ST 75 is compatible with • IntelliHeat Control Technology
®
all IntelliHeat handpieces and comes as a system with the new SX-100 or • Dial control
®
as a Power Source only. The ST 75 improves quality, reduces costs and • °C/°F Temperature Scales
eliminates the maintenance and calibration hassles associated with other • Temperature lockout
systems. The heavy-duty, durable metal housing ensures years of service • Fixed Temperature SetBack
and the sloped face of the front panel is a standard feature for ease of use. (30 mins)
• Fixed Auto-Off (30 mins)
• Hi-Flo Pump
• Patented Snap-Vac Technology
• ESD grounding jack
• ESD Safe metal housing
• Stackable
ST 115

A single channel, digital display, fully programmable power supply, the ST • IntelliHeat Control Technology
®
115 is compatible with all IntelliHeat handpieces and comes as a system • Digital Display and Keypad
®
with the new SX-100 or as a Power Source only. The programmable features • °C/°F Display Options
of the ST 115 cannot be found anywhere on similarly priced systems! The • Password lockout
ST 115 improves quality, reduces costs and eliminates the maintenance and • Temperature SetBack
calibration hassles associated with other systems. The heavy-duty, durable • Auto-Off
metal housing ensures years of service and the sloped face of the front • User defined operating
panel is a standard feature for ease of use. temperature range
• Hi-Flo Pump
• Patented Snap-Vac Technology
• ESD grounding jack
• ESD Safe metal housing
• Stackable
9
