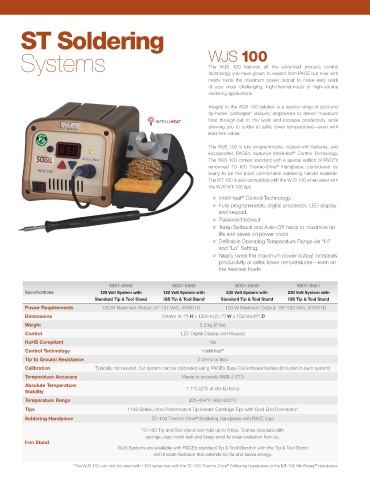

ST Soldering

Systems WJS 100

The WJS 100 features all the advanced process control
technology you have grown to expect from PACE but now with
nearly twice the maximum power output to make easy work
of your most challenging, high-thermal-mass or high-volume
soldering applications.
Integral to the WJS 100 solution is a special range of gold-end
tip-heater cartridges* uniquely engineered to deliver maximum
heat through-put to the work and increase productivity while
allowing you to solder at safer, lower temperatures—even with
lead-free solder.

The WJS 100 is fully programmable, loaded with features, and
incorporates PACE’s exclusive IntelliHeat Control Technology.
®
The WJS 100 comes standard with a special edition of PACE’s
renowned TD-100 Thermo-Drive Handpiece, considered by
®
many to be the most comfortable soldering handle available.
The MT-100 is also compatible with the WJS 100 when used with
the WJS MT-100 tips.
• IntelliHeat Control Technology.
®
• Fully programmable, digital processor, LED display
and keypad.
• Password lockout
• Temp Setback and Auto-Off helps to maximize tip
life and saves on power costs.
• Definable Operating Temperature Range via “Hi”
and “Lo” Setting.
• Nearly twice the maximum power output increases
productivity at safer, lower temperatures—even on
the heaviest loads.

8007-0558 8007-0560 8007-0559 8007-0561
Specifications 120 Volt System with 120 Volt System with 230 Volt System with 230 Volt System with
Standard Tip & Tool Stand ISB Tip & Tool Stand Standard Tip & Tool Stand ISB Tip & Tool Stand
Power Requirements 120 W Maximum Output, 97-127 VAC, 50/60 Hz 120 W Maximum Output, 197-253 VAC, 50/60 Hz
Dimensions 104mm (4.1") H x 130mm (5.1") W x 152mm (6") D
Weight 2.3 kg (5 lbs)
Control LED Digital Display and Keypad
RoHS Compliant Yes
Control Technology IntelliHeat ®
Tip to Ground Resistance 2 ohms or less
Calibration Typically not needed, but system can be calibrated using PACE’s Easy-Cal software feature (included in each system)
Temperature Accuracy Meets or exceeds ANSI-J-STD
Absolute Temperature 1.1°C (2°F) at idle tip temp
Stability
Temperature Range 205-454°C (400-850°F)
Tips 1128 Series, Ultra-Performance Tip-Heater Cartridge Tips with Gold End Connector*.
®
Soldering Handpiece TD-100 Thermo-Drive Soldering Handpiece with PACE logo
TD-100 Tip and Tool stand can hold up to 6 tips. Comes standard with
sponge, stay-moist well and brass wool to clean oxidation from tip.
Iron Stand
WJS Systems are available with PACE’s standard Tip & Tool Stand or with the Tip & Tool Stand
with Instant-Setback that extends tip life and saves energy.

*The WJS 100 can only be used with 1128 series tips with the TD-100 Thermo-Drive Soldering Handpiece or the MT-100 MiniTweez Handpiece.
®
®
