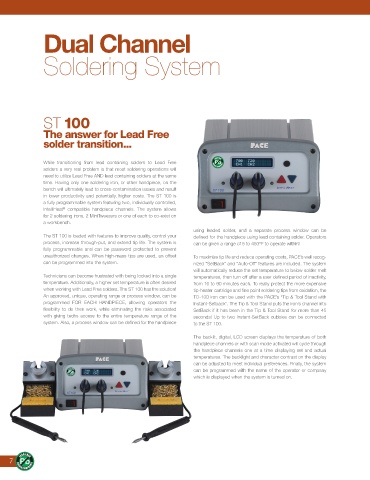

Dual Channel

Soldering System

ST 100
The answer for Lead Free
solder transition...

While transitioning from lead containing solders to Lead Free
solders a very real problem is that most soldering operations will
need to utilize Lead Free AND lead containing solders at the same
time. Having only one soldering iron, or other handpiece, on the
bench will ultimately lead to cross-contamination issues and result
in lower productivity and potentially, higher costs. The ST 100 is
a fully programmable system featuring two, individually controlled,
IntelliHeat compatible handpiece channels. The system allows
®
for 2 soldering irons, 2 MiniTweezers or one of each to co-exist on
a workbench.
using leaded solder, and a separate process window can be
The ST 100 is loaded with features to improve quality, control your defined for the handpiece using lead containing solder. Operators
process, increase through-put, and extend tip life. The system is can be given a range of 5 to 450°F to operate within!
fully programmable and can be password protected to prevent
unauthorized changes. When high-mass tips are used, an offset To maximize tip life and reduce operating costs, PACE’s well recog-
can be programmed into the system. nized “SetBack” and “Auto-Off” features are included. The system
will automatically reduce the set temperature to below solder melt
Technicians can become frustrated with being locked into a single temperatures, then turn off after a user defined period of inactivity,
temperature. Additionally, a higher set temperature is often desired from 10 to 90 minutes each. To really protect the more expensive
when working with Lead Free solders. The ST 100 has the solution! tip-heater cartridge and fine point soldering tips from oxidation, the
An approved, unique, operating range or process window, can be TD-100 iron can be used with the PACE’s “Tip & Tool Stand with
programmed FOR EACH HANDPIECE, allowing operators the Instant-Setback”. The Tip & Tool Stand puts the iron’s channel into
flexibility to do their work, while eliminating the risks associated SetBack if it has been in the Tip & Tool Stand for more than 45
with giving techs access to the entire temperature range of the seconds! Up to two Instant-SetBack cubbies can be connected
system. Also, a process window can be defined for the handpiece to the ST 100.

The backlit, digital, LCD screen displays the temperature of both
handpiece channels or with scan mode activated will cycle through
the handpiece channels one at a time displaying set and actual
temperatures. The backlight and character contrast on the display
can be adjusted to meet individual preferences. Finally, the system
can be programmed with the name of the operator or company
which is displayed when the system is turned on.
