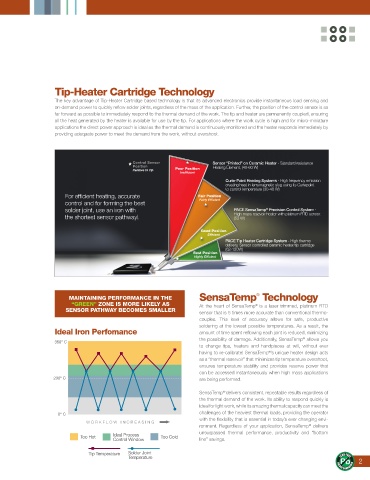

Tip-Heater Cartridge Technology
The key advantage of Tip-Heater Cartridge based technology is that its advanced electronics provide instantaneous load sensing and
on-demand power to quickly reflow solder joints, regardless of the mass of the application. Further, the position of the control sensor is as
far forward as possible to immediately respond to the thermal demand of the work. The tip and heater are permanently coupled, ensuring
all the heat generated by the heater is available for use by the tip. For applications where the work cycle is high and for micro-miniature
applications the direct power approach is ideal as the thermal demand is continuously monitored and the heater responds immediately by
providing adequate power to meet the demand from the work, without overshoot.

Control Sensor Sensor “Printed” on Ceramic Heater - Standard resistance
Position Heating Element, (40-60 W)
Relative to Tip Poor Position
Inefficient
Curie-Point Heating Systems - High frequency emission
creating heat in ferromagnetic slug using its Curiepoint
to control temperature (30-40 W)
For efficient heating, accurate Fair Position
control and for forming the best Fairly Efficient
solder joint, use an iron with PACE SensaTemp Precision Control System -
®
the shortest sensor pathway! High mass resevoir heater with platinum RTD sensor.
(52 W)
Good Position
Efficient
PACE Tip Heater Cartridge System - High thermo
delivery, Sensor controlled ceramic heater/tip cartridge
(62-120W)
Best Position
Highly Efficient

®
MAINTAINING PERFORMANCE IN THE SensaTemp Technology
“GREEN” ZONE IS MORE LIKELY AS At the heart of SensaTemp is a laser trimmed, platinum RTD
®
SENSOR PATHWAY BECOMES SMALLER sensor that is 5 times more accurate than conventional thermo-
couples. This level of accuracy allows for safe, productive
soldering at the lowest possible temperatures. As a result, the
Ideal Iron Perfomance amount of time spent reflowing each joint is reduced, minimizing
®
the possibility of damage. Additionally, SensaTemp allows you
350° C
to change tips, heaters and handpieces at will, without ever
®
having to re-calibrate! SensaTemp ’s unique heater design acts
as a “thermal reservoir” that minimizes tip temperature overshoot,
ensures temperature stability and provides reserve power that
can be accessed instantaneously when high mass applications
200° C are being performed.
®
SensaTemp delivers consistent, repeatable results regardless of
the thermal demand of the work. Its ability to respond quickly is
ideal for light work, while its amazing thermal capacity can meet the
0° C challenges of the heaviest thermal loads, providing the operator
with the flexibility that is essential in today’s ever changing envi-
WORKFLOW INCREASING
ronment. Regardless of your application, SensaTemp delivers
®
unsurpassed thermal performance, productivity and “bottom
Too Hot Ideal Process Too Cold
Control Window line” savings.
Tip Temperature Solder Joint
Temperature
