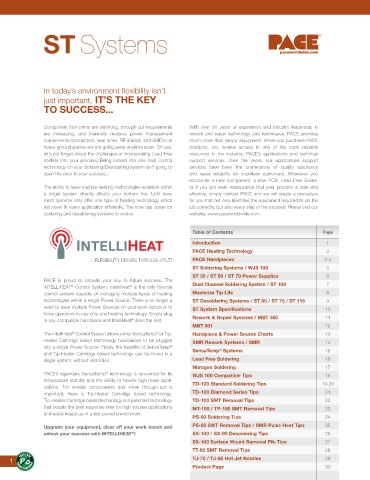

ST Systems

In today’s environment flexibility isn’t
just important, IT’S THE KEY
TO SUCCESS...

Component foot-prints are shrinking, through-put requirements With over 50 years of experience and industry leadership in
are increasing, and thermally massive power management rework and repair technology and techniques, PACE provides
components (connectors, heat sinks, RF shields, and SMDs) on much more than simply equipment. When you purchase PACE
heavy ground planes are not going away anytime soon. Oh yes, products, you receive access to one of the most valuable
let’s not forget about the challenges of incorporating Lead Free resources in the industry; PACE’s applications and technical
solders into your process! Being locked into one heat control support services. Over the years, our applications support
technology on your Soldering/Desoldering system isn’t going to services have been the cornerstone of quality assurance
open the door to your success... and repair reliability for countless customers. Whenever you
encounter a new component, a new PCB, Lead Free Solder,
The ability to have multiple heating technologies available within or if you just want reassurance that your process is safe and
a single system directly affects your bottom line. Until now, effective, simply contact PACE and we will create a procedure
most systems only offer one type of heating technology which for you that not only identifies the equipment required to do the
will never fit every application efficiently. The time has come for job correctly, but also every step in the process! Please visit our
soldering and desoldering systems to evolve. website, www.paceworldwide.com.

Table of Contents Page

Introduction 1
PACE Heating Technology 2
....FLEXIBILITY DRIVES THROUGH-PUT! PACE Handpieces 3-4
ST Soldering Systems / WJS 100 5
ST 30 / ST 50 / ST 70 Power Supplies 6
PACE is proud to provide your key to future success...The
INTELLIHEAT Control System. IntelliHeat is the only thermal Dual Channel Soldering System / ST 100 7
®
®
control system capable of managing multiple types of heating Maximize Tip Life 8
technologies within a single Power Source. There is no longer a ST Desoldering Systems / ST 65 / ST 75 / ST 115 9
need to have multiple Power Sources on your work bench or to ST System Specifications 10
force operators to use only one heating technology. Simply plug
in any compatible handpiece and IntelliHeat does the rest. Rework & Repair Systems / MBT 350 11
®
MBT 301 12
®
®
The IntelliHeat Control System allows either SensaTemp or Tip- Handpiece & Power Source Charts 13
Heater Cartridge based technology handpieces to be plugged SMR Rework Systems / SMR 14
into a single Power Source. Finally, the benefits of SensaTemp ®
®
and Tip-Heater Cartridge based technology can be found in a SensaTemp Systems 15
single system, without restriction. Lead Free Soldering 16
Nitrogen Soldering 17
®
PACE’s legendary SensaTemp technology is renowned for its WJS 100 Compatible Tips 18
temperature stability and the ability to handle high mass appli- TD-100 Standard Soldering Tips 19-20
cations. For smaller components and when through-put is
important, there is Tip-Heater Cartridge based technology. TD-100 Diamond Series Tips 21
Tip-Heater Cartridge based technology is a patented technology TD-100 SMT Removal Tips 22
that boasts the best response time for high volume applications MT-100 / TP-100 SMT Removal Tips 23
and easily keeps up in a fast paced environment.
PS-90 Soldering Tips 24
Upgrade your equipment, clear off your work bench and PS-90 SMT Removal Tips / SMR Pulse Heat Tips 25
®
unlock your success with INTELLIHEAT ! SX-100 / SX-90 Desoldering Tips 26
SX-100 Surface Mount Removal Pik-Tips 27
TT-65 SMT Removal Tips 28
1 TJ-70 / TJ-85 Hot Jet Nozzles 29
Product Page 30
