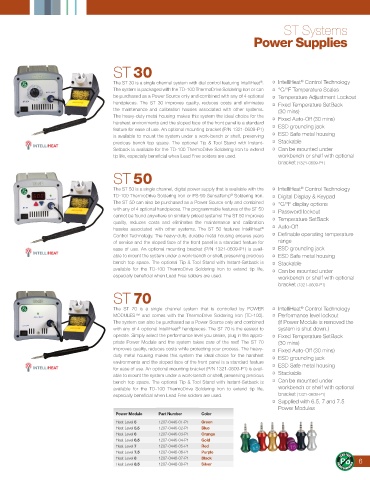

ST Systems
Power Supplies

ST 30

®
The ST 30 is a single channel system with dial control featuring IntelliHeat . • IntelliHeat Control Technology
®
The system is packaged with the TD-100 ThermoDrive Soldering Iron or can • °C/°F Temperature Scales
be purchased as a Power Source only and combined with any of 4 optional • Temperature Adjustment Lockout
handpieces. The ST 30 improves quality, reduces costs and eliminates • Fixed Temperature SetBack
the maintenance and calibration hassles associated with other systems. (30 mins)
The heavy-duty metal housing makes this system the ideal choice for the • Fixed Auto-Off (30 mins)
harshest environments and the sloped face of the front panel is a standard • ESD grounding jack
feature for ease of use. An optional mounting bracket (P/N 1321-0609-P1)
is available to mount the system under a work-bench or shelf, preserving • ESD Safe metal housing
precious bench top space. The optional Tip & Tool Stand with Instant- • Stackable
Setback is available for the TD-100 ThermoDrive Soldering Iron to extend • Can be mounted under
tip life, especially beneficial when Lead Free solders are used. workbench or shelf with optional
bracket (1321-0609-P1)
ST 50

The ST 50 is a single channel, digital power supply that is available with the • IntelliHeat Control Technology
®
TD-100 ThermoDrive Soldering Iron or PS-90 SensaTemp Soldering Iron. • Digital Display & Keypad
®
The ST 50 can also be purchased as a Power Source only and combined • °C/°F display options
with any of 4 optional handpieces. The programmable features of the ST 50 • Password lockout
cannot be found anywhere on similarly priced systems! The ST 50 improves • Temperature SetBack
quality, reduces costs and eliminates the maintenance and calibration
® • Auto-Off
hassles associated with other systems. The ST 50 features IntelliHeat
Control Technology. The heavy-duty, durable metal housing ensures years • Definable operating temperature
of service and the sloped face of the front panel is a standard feature for range
ease of use. An optional mounting bracket (P/N 1321-0609-P1) is avail- • ESD grounding jack
able to mount the system under a work-bench or shelf, preserving precious • ESD Safe metal housing
bench top space. The optional Tip & Tool Stand with Instant-Setback is • Stackable
available for the TD-100 ThermoDrive Soldering Iron to extend tip life, • Can be mounted under
especially beneficial when Lead Free solders are used. workbench or shelf with optional
bracket (1321-0609-P1)
ST 70

The ST 70 is a single channel system that is controlled by POWER • IntelliHeat Control Technology
®
MODULES™ and comes with the ThermoDrive Soldering Iron (TD-100). • Performance level lockout
The system can also be purchased as a Power Source only and combined (if Power Module is removed the
®
with any of 4 optional IntelliHeat handpieces. The ST 70 is the easiest to system is shut down.)
operate. Simply select the performance level you desire, plug in the appro- • Fixed Temperature SetBack
priate Power Module and the system takes care of the rest! The ST 70 (30 mins)
improves quality, reduces costs while protecting your process. The heavy- • Fixed Auto-Off (30 mins)
duty metal housing makes this system the ideal choice for the harshest • ESD grounding jack
environments and the sloped face of the front panel is a standard feature • ESD Safe metal housing
for ease of use. An optional mounting bracket (P/N 1321-0609-P1) is avail-
able to mount the system under a work-bench or shelf, preserving precious • Stackable
bench top space. The optional Tip & Tool Stand with Instant-Setback is • Can be mounted under
available for the TD-100 ThermoDrive Soldering Iron to extend tip life, workbench or shelf with optional
especially beneficial when Lead Free solders are used. bracket (1321-0609-P1)
• Supplied with 6.5, 7 and 7.5
Power Modules
Power Module Part Number Color
Heat Level 5 1207-0446-01-P1 Green
Heat Level 5.5 1207-0446-02-P1 Blue
Heat Level 6 1207-0446-03-P1 Orange
Heat Level 6.5 1207-0446-04-P1 Gold
Heat Level 7 1207-0446-05-P1 Red
Heat Level 7.5 1207-0446-06-P1 Purple
Heat Level 8 1207-0446-07-P1 Black 6
Heat Level 8.5 1207-0446-08-P1 Silver
