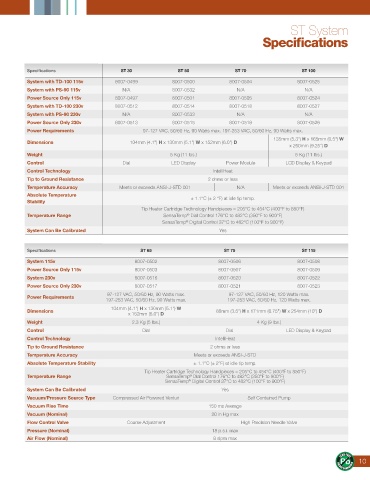

Page 11 - PACE Katalógus

ST System
Specifications

Specifications ST 30 ST 50 ST 70 ST 100
System with TD-100 115v 8007-0499 8007-0500 8007-0504 8007-0525
System with PS-90 115v N/A 8007-0532 N/A N/A
Power Source Only 115v 8007-0497 8007-0501 8007-0505 8007-0524
System with TD-100 230v 8007-0512 8007-0514 8007-0518 8007-0527
System with PS-90 230v N/A 8007-0533 N/A N/A
Power Source Only 230v 8007-0513 8007-0515 8007-0519 8007-0526
Power Requirements 97-127 VAC, 50/60 Hz, 90 Watts max. 197-253 VAC, 50/60 Hz, 90 Watts max.
135mm (5.3") H x 165mm (6.5") W
Dimensions 104mm (4.1") H x 130mm (5.1") W x 152mm (6.0") D
x 260mm (9.25") D
Weight 5 Kg (11 lbs.) 5 Kg (11 lbs.)
Control Dial LED Display Power Module LCD Display & Keypad
Control Technology IntelliHeat
Tip to Ground Resistance 2 ohms or less
Temperature Accuracy Meets or exceeds ANSI-J-STD 001 N/A Meets or exceeds ANSI-J-STD 001
Absolute Temperature ± 1.1°C (± 2 °F) at idle tip temp.
Stability
Tip Heater Cartridge Technology Handpieces = 205°C to 454°C (400°F to 850°F)
®
Temperature Range SensaTemp Dial Control 176°C to 482°C (350°F to 900°F)
SensaTemp Digital Control 37°C to 482°C (100°F to 900°F)
®
System Can Be Calibrated Yes

Specifications ST 65 ST 75 ST 115
System 115v 8007-0502 8007-0506 8007-0508
Power Source Only 115v 8007-0503 8007-0507 8007-0509
System 230v 8007-0516 8007-0520 8007-0522
Power Source Only 230v 8007-0517 8007-0521 8007-0523
97-127 VAC, 50/60 Hz, 90 Watts max. 97-127 VAC, 50/60 Hz, 120 Watts max.
Power Requirements
197-253 VAC, 50/60 Hz, 90 Watts max. 197-253 VAC, 50/60 Hz, 120 Watts max.
104mm (4.1") H x 130mm (5.1") W
Dimensions 88mm (3.5") H x 171mm (6.75") W x 254mm (10") D
x 152mm (6.0") D
Weight 2.3 Kg (5 lbs.) 4 Kg (9 lbs.)
Control Dial Dial LED Display & Keypad
Control Technology IntelliHeat
Tip to Ground Resistance 2 ohms or less
Temperature Accuracy Meets or exceeds ANSI-J-STD
ST 115 Absolute Temperature Stability ± 1.1°C (± 2°F) at idle tip temp.

A single channel, digital display, fully programmable power supply, the ST • IntelliHeat Control Technology Temperature Range Tip Heater Cartridge Technology Handpieces = 205°C to 454°C (400°F to 850°F)
SensaTemp Dial Control 176°C to 482°C (350°F to 900°F)
®
®
®
115 is compatible with all IntelliHeat handpieces and comes as a system • Digital Display and Keypad SensaTemp Digital Control 37°C to 482°C (100°F to 900°F)
®
with the new SX-100 or as a Power Source only. The programmable features • °C/°F Display Options System Can Be Calibrated Yes
of the ST 115 cannot be found anywhere on similarly priced systems! The • Password lockout Vacuum/Pressure Source Type Compressed Air Powered Venturi Self Contained Pump
ST 115 improves quality, reduces costs and eliminates the maintenance and • Temperature SetBack Vacuum Rise Time 150 ms Average
calibration hassles associated with other systems. The heavy-duty, durable • Auto-Off
metal housing ensures years of service and the sloped face of the front • User defined operating Vacuum (Nominal) 20 in Hg max
panel is a standard feature for ease of use. temperature range Flow Control Valve Coarse Adjustment High Precision Needle Valve
• Hi-Flo Pump Pressure (Nominal) 18 p.s.i. max
• Patented Snap-Vac Technology Air Flow (Nominal) 8 slpm max
• ESD grounding jack
• ESD Safe metal housing
• Stackable
