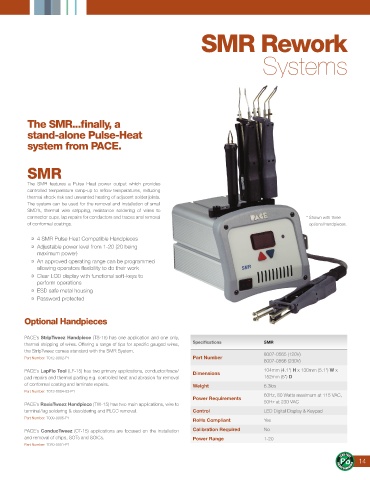

Page 15 - PACE Katalógus

SMR Rework

Systems

The SMR...finally, a
stand-alone Pulse-Heat

system from PACE.

SMR

The SMR features a Pulse Heat power output which provides
controlled temperature ramp-up to reflow temperatures, reducing
thermal shock risk and unwanted heating of adjacent solder joints.
The system can be used for the removal and installation of small
SMD’s, thermal wire stripping, resistance soldering of wires to
connector cups, lap repairs for conductors and traces and removal * Shown with three
of conformal coatings. optional handpieces.
• 4 SMR Pulse Heat Compatible Handpieces
• Adjustable power level from 1-20 (20 being
maximum power)
• An approved operating range can be programmed
allowing operators flexibility to do their work
• Clear LCD display with functional soft-keys to
perform operations
• ESD safe metal housing
• Password protected

Optional Handpieces

PACE’s StripTweez Handpiece (TS-15) has one application and one only,
thermal stripping of wires. Offering a range of tips for specific gauged wires, Specifications SMR
the StripTweez comes standard with the SMR System. 8007-0565 (120V)
Part Number: 7012-0002-P1 Part Number
8007-0566 (230V)
PACE’s LapFlo Tool (LF-15) has two primary applications, conductor/trace/ Dimensions 104mm (4.1") H x 130mm (5.1") W x
pad repairs and thermal parting e.g. controlled heat and abrasion for removal 152mm (6") D
of conformal coating and laminate repairs. Weight 6.3lbs
Part Number: 7013-0004-02-P1
Power Requirements 60Hz, 80 Watts maximum at 115 VAC,
PACE’s ResisTweez Handpiece (TW-15) has two main applications, wire to 50Hz at 230 VAC
terminal/lug soldering & desoldering and PLCC removal. Control LED Digital Display & Keypad
Part Number: 7009-0005-P1 RoHs Compliant Yes
PACE’s ConducTweez (CT-15) applications are focused on the installation Calibration Required No
and removal of chips, SOTs and SOICs. Power Range 1-20
Part Number: 7020-0001-P1
