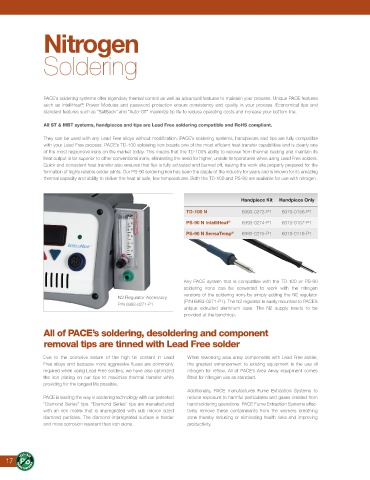

Nitrogen

Soldering

PACE’s soldering systems offer legendary thermal control as well as advanced features to maintain your process. Unique PACE features
such as IntelliHeat , Power Modules and password protection ensure consistency and quality in your process. Economical tips and
®
standard features such as “SetBack” and “Auto-Off” maximize tip life to reduce operating costs and increase your bottom line.
All ST & MBT systems, handpieces and tips are Lead Free soldering compatible and RoHS compliant.

They can be used with any Lead Free alloys without modification. PACE’s soldering systems, handpieces and tips are fully compatible
with your Lead Free process. PACE’s TD-100 soldering iron boasts one of the most efficient heat transfer capabilities and is clearly one
of the most responsive irons on the market today. This means that the TD-100’s ability to recover from thermal loading and maintain its
heat output is far superior to other conventional irons, eliminating the need for higher, unsafe temperatures when using Lead Free solders.
Quick and consistent heat transfer also ensures that flux is fully activated and burned off, leaving the work site properly prepared for the
formation of highly reliable solder joints. Our PS-90 soldering iron has been the staple of the industry for years and is known for its amazing
thermal capacity and ability to deliver the heat at safe, low temperatures. Both the TD-100 and PS-90 are available for use with nitrogen.

Handpiece Kit Handpiece Only
TD-100 N 6993-0272-P1 6010-0156-P1
PS-90 N IntelliHeat ® 6993-0274-P1 6010-0157-P1

PS-90 N SensaTemp ® 6993-0275-P1 6010-0116-P1

Any PACE system that is compatible with the TD-100 or PS-90
soldering irons can be converted to work with the nitrogen
versions of the soldering irons by simply adding the N2 regulator
N2 Regulator Accessory
(P/N 6993-0271-P1). The N2 regulator is easily mounted to PACE’s
P/N 6993-0271-P1
unique extruded aluminum case. The N2 supply needs to be
provided at the benchtop.

All of PACE’s soldering, desoldering and component
removal tips are tinned with Lead Free solder

Due to the corrosive nature of the high tin content in Lead When reworking area array components with Lead Free solder,
Free alloys and because more aggressive fluxes are commonly the greatest enhancement to existing equipment is the use of
required when using Lead Free solders, we have also optimized nitrogen for reflow. All of PACE’s Area Array equipment comes
the iron plating on our tips to maximize thermal transfer while fitted for nitrogen use as standard.
providing for the longest life possible.
Additionally, PACE manufactures Fume Extraction Systems to
PACE is leading the way in soldering technology with our patented reduce exposure to harmful particulates and gases created from
“Diamond Series” tips. “Diamond Series” tips are manufactured hand soldering operations. PACE Fume Extraction Systems effec-
with an iron matrix that is impregnated with sub micron sized tively remove these contaminants from the workers breathing
diamond particles. The diamond-impregnated surface is harder zone thereby reducing or eliminating health risks and improving
and more corrosion resistant than iron alone. productivity.
