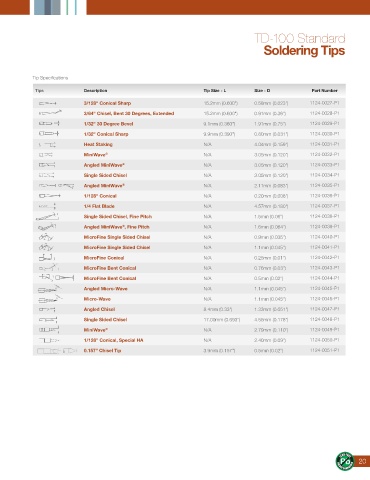

TD-100 Standard

Soldering Tips

Tip Specifications

Tips Description Tip Size - L Size - D Part Number

3/128" Conical Sharp 15.2mm (0.600") 0.58mm (0.023") 1124-0027-P1
3/64" Chisel, Bent 30 Degrees, Extended 15.2mm (0.600") 0.91mm (0.36") 1124-0028-P1
1/32" 30 Degree Bevel 9.1mm (0.360") 1.91mm (0.75") 1124-0029-P1
1/32" Conical Sharp 9.9mm (0.390") 0.80mm (0.031") 1124-0030-P1
Heat Staking N/A 4.04mm (0.159") 1124-0031-P1
MiniWave ® N/A 3.05mm (0.120") 1124-0032-P1
Angled MiniWave ® N/A 3.05mm (0.120") 1124-0033-P1

Single Sided Chisel N/A 3.05mm (0.120") 1124-0034-P1
Angled MiniWave ® N/A 2.11mm (0.083") 1124-0035-P1
1/128" Conical N/A 0.20mm (0.008") 1124-0036-P1
1/4 Flat Blade N/A 4.57mm (0.180") 1124-0037-P1
Single Sided Chisel, Fine Pitch N/A 1.5mm (0.06") 1124-0038-P1
®
Angled MiniWave , Fine Pitch N/A 1.6mm (0.064") 1124-0039-P1
MicroFine Single Sided Chisel N/A 0.9mm (0.035") 1124-0040-P1
MicroFine Single Sided Chisel N/A 1.1mm (0.045") 1124-0041-P1
MicroFine Conical N/A 0.25mm (0.01") 1124-0042-P1

MicroFine Bent Conical N/A 0.76mm (0.03") 1124-0043-P1
MicroFine Bent Conical N/A 0.5mm (0.02") 1124-0044-P1
Angled Micro-Wave N/A 1.1mm (0.045") 1124-0045-P1
Micro-Wave N/A 1.1mm (0.045") 1124-0046-P1
Angled Chisel 8.4mm (0.33") 1.33mm (0.051") 1124-0047-P1
Single Sided Chisel 17.00mm (0.693") 4.55mm (0.178") 1124-0048-P1

MiniWave ® N/A 2.79mm (0.110") 1124-0049-P1
1/128" Conical, Special HA N/A 2.40mm (0.09") 1124-0050-P1
0.157" Chisel Tip 3.9mm (0.157") 0.5mm (0.02") 1124-0051-P1
