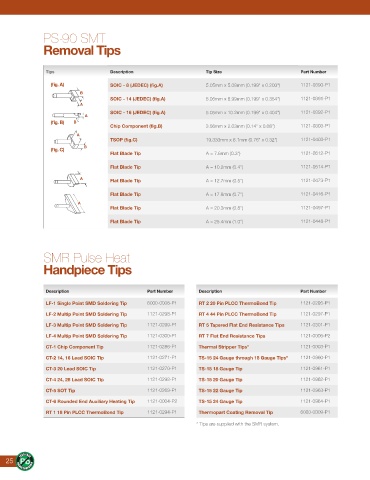

PS-90 SMT

Removal Tips

Tips Description Tip Size Part Number

(fig. A) SOIC - 8 (JEDEC) (fig.A) 5.05mm x 5.08mm (0.199" x 0.200") 1121-0390-P1
B
SOIC - 14 (JEDEC) (fig.A) 5.05mm x 8.99mm (0.199" x 0.354") 1121-0391-P1
A
SOIC - 16 (JEDEC) (fig.A) 5.05mm x 10.2mm (0.199" x 0.404") 1121-0392-P1
A
(fig. B) B
Chip Component (fig.B) 3.56mm x 2.03mm (0.14" x 0.08") 1121-0303-P1
A
TSOP (fig.C) 19.333mm x 8.1mm (0.76" x 0.32") 1121-0403-P1
B
(fig. C)
Flat Blade Tip A = 7.6mm (0.3") 1121-0512-P1
Flat Blade Tip A = 10.2mm (0.4") 1121-0514-P1
A Flat Blade Tip A = 12.7mm (0.5") 1121-0473-P1

Flat Blade Tip A = 17.8mm (0.7") 1121-0416-P1
A
Flat Blade Tip A = 20.3mm (0.8") 1121-0497-P1

Flat Blade Tip A = 25.4mm (1.0") 1121-0448-P1

SMR Pulse Heat
Handpiece Tips

Description Part Number Description Part Number
LF-1 Single Point SMD Soldering Tip 6000-0008-P1 RT 2 20 Pin PLCC ThermoBond Tip 1121-0295-P1
LF-2 Multip Point SMD Soldering Tip 1121-0298-P1 RT 4 44 Pin PLCC ThermoBond Tip 1121-0297-P1
LF-3 Multip Point SMD Soldering Tip 1121-0299-P1 RT 5 Tapered Flat End Resistance Tips 1121-0301-P1

LF-4 Multip Point SMD Soldering Tip 1121-0300-P1 RT 7 Flat End Resistance Tips 1121-0006-P2
CT-1 Chip Component Tip 1121-0286-P1 Thermal Stripper Tips* 1121-0003-P1
CT-2 14, 16 Lead SOIC Tip 1121-0271-P1 TS-15 24 Gauge through 18 Gauge Tips* 1121-0960-P1

CT-3 20 Lead SOIC Tip 1121-0270-P1 TS-15 18 Gauge Tip 1121-0961-P1
CT-4 24, 28 Lead SOIC Tip 1121-0293-P1 TS-15 20 Gauge Tip 1121-0962-P1
CT-5 SOT Tip 1121-0269-P1 TS-15 22 Gauge Tip 1121-0963-P1
CT-6 Rounded End Auxiliary Heating Tip 1121-0004-P2 TS-15 24 Gauge Tip 1121-0964-P1
RT 1 18 Pin PLCC ThermoBond Tip 1121-0294-P1 Thermopart Coating Removal Tip 6000-0009-P1

* Tips are supplied with the SMR system.
