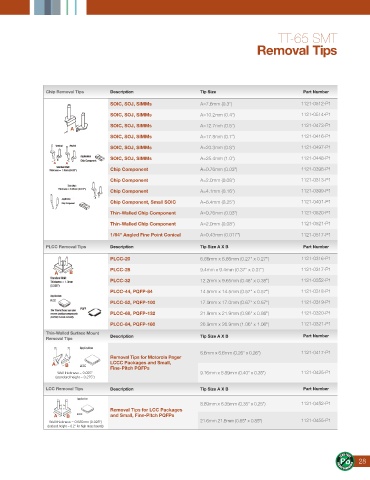

Page 29 - PACE Katalógus

TT-65 SMT

Removal Tips

Chip Removal Tips Description Tip Size Part Number

SOIC, SOJ, SIMMs A=7.6mm (0.3") 1121-0512-P1
SOIC, SOJ, SIMMs A=10.2mm (0.4") 1121-0514-P1
SOIC, SOJ, SIMMs A=12.7mm (0.5") 1121-0473-P1
A
SOIC, SOJ, SIMMs A=17.8mm (0.7") 1121-0416-P1
SOIC, SOJ, SIMMs A=20.3mm (0.8") 1121-0497-P1
SOIC, SOJ, SIMMs A=25.4mm (1.0") 1121-0448-P1
A A
Chip Component A=0.76mm (0.03") 1121-0398-P1
Chip Component A=2.0mm (0.08") 1121-0313-P1

Chip Component A=4.1mm (0.16") 1121-0399-P1
Chip Component, Small SOIC A=6.4mm (0.25") 1121-0401-P1
Thin-Walled Chip Component A=0.76mm (0.03") 1121-0520-P1

Thin-Walled Chip Component A=2.0mm (0.08") 1121-0521-P1
1/64" Angled Fine Point Conical A=0.43mm (0.017") 1121-0517-P1
PLCC Removal Tips Description Tip Size A X B Part Number

PLCC-20 6.86mm x 6.86mm (0.27" x 0.27") 1121-0316-P1

A B PLCC-28 9.4mm x 9.4mm (0.37" x 0.37") 1121-0317-P1
PLCC-32 12.2mm x 9.65mm (0.48" x 0.38") 1121-0352-P1

PLCC-44, PQFP-84 14.5mm x 14.5mm (0.57" x 0.57") 1121-0318-P1
PLCC-52, PQFP-100 17.0mm x 17.0mm (0.67" x 0.67") 1121-0319-P1
PLCC-68, PQFP-132 21.9mm x 21.9mm (0.86" x 0.86") 1121-0320-P1
PLCC-84, PQFP-160 26.9mm x 26.9mm (1.06" x 1.06") 1121-0321-P1
Thin-Walled Surface Mount
Removal Tips Description Tip Size A X B Part Number

6.6mm x 6.6mm (0.26" x 0.26") 1121-0417-P1
Removal Tips for Motorola Pager
A B LCCC Packages and Small,
Fine-Pitch PQFPs
Wall thickness = 0.025” 9.16mm x 8.89mm (0.40" x 0.35") 1121-0425-P1
(standard height = 0.275”)

LCC Removal Tips Description Tip Size A X B Part Number

8.89mm x 6.35mm (0.35" x 0.25") 1121-0452-P1
Removal Tips for LCC Packages
A B and Small, Fine-Pitch PQFPs
Wall thickness = 0.635mm (0.025”) 21.6mm 21.6mm (0.85" x 0.85") 1121-0455-P1
(reduced height = 0.2” for high mass boards)

28
