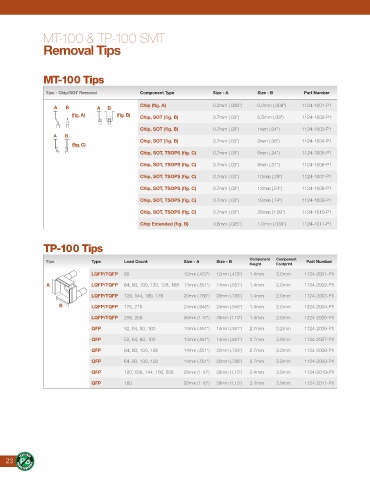

MT-100 & TP-100 SMT

Removal Tips

MT-100 Tips

Tips - Chip/SOT Removal Component Type Size - A Size - B Part Number

A B A B Chip (fig. A) 0.2mm (.008") 0.2mm (.008") 1124-1001-P1
(fig. A) (fig. B) Chip, SOT (fig. B) 0.7mm (.03") 0.5mm (.03") 1124-1002-P1

Chip, SOT (fig. B) 0.7mm (.03") 1mm (.04") 1124-1003-P1
A B
Chip, SOT (fig. B) 0.7mm (.03") 2mm (.08") 1124-1004-P1
(fig. C)
Chip, SOT, TSOPS (fig. C) 0.7mm (.03") 6mm (.24") 1124-1005-P1
Chip, SOT, TSOPS (fig. C) 0.7mm (.03") 8mm (.31") 1124-1006-P1

Chip, SOT, TSOPS (fig. C) 0.7mm (.03") 10mm (.39") 1124-1007-P1
Chip, SOT, TSOPS (fig. C) 0.7mm (.03") 13mm (.51") 1124-1008-P1

Chip, SOT, TSOPS (fig. C) 0.7mm (.03") 18mm (.74") 1124-1009-P1
Chip, SOT, TSOPS (fig. C) 0.7mm (.03") 28mm (1.09") 1124-1010-P1

Chip Extended (fig. B) 0.6mm (.025") 1.0mm (.039") 1124-1011-P1

TP-100 Tips

Tips Type Lead Count Size - A Size - B Component Component Part Number
Height Footprint
LQFP/TQFP 80 12mm (.472") 12mm (.472") 1.4mm 2.0mm 1124-2001-P1
A LQFP/TQFP 64, 80, 100, 120, 128, 168 14mm (.551") 14mm (.551") 1.4mm 2.0mm 1124-2002-P1
LQFP/TQFP 128, 144, 160, 176 20mm (.788") 20mm (.788") 1.4mm 2.0mm 1124-2003-P1
B LQFP/TQFP 176, 216 24mm (.945") 24mm (.945") 1.4mm 2.0mm 1224-2004-P1

LQFP/TQFP 208, 256 28mm (1.10") 28mm (1.10") 1.4mm 2.0mm 1224-2005-P1
QFP 52, 64, 80, 100 14mm (.551") 14mm (.551") 2.7mm 3.2mm 1124-2006-P1
QFP 52, 64, 80, 100 14mm (.551") 14mm (.551") 2.7mm 3.9mm 1124-2007-P1

QFP 64, 80, 100, 128 14mm (.551") 20mm (.788") 2.7mm 3.2mm 1124-2008-P1
QFP 64, 80, 100, 128 14mm (.551") 20mm (.788") 2.7mm 3.9mm 1124-2009-P1
QFP 120, 128, 144, 160, 208 28mm (1.10") 28mm (1.10") 3.4mm 3.9mm 1124-2010-P1
QFP 160 28mm (1.10") 28mm (1.10") 3.4mm 3.9mm 1124-2011-P1

23
