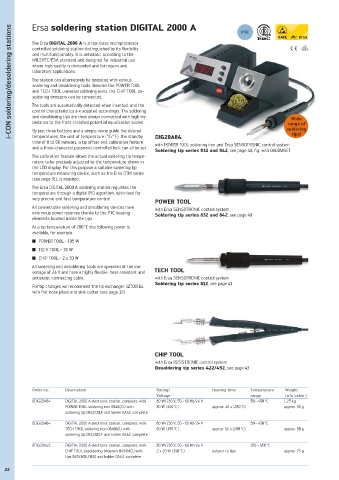

Ersa soldering station DIGITAL 2000 A
     i-CON soldering/desoldering stations
                                                                                      PTC
            The Ersa DIGITAL 2000 A is a top-class microprocessor
            controlled soldering station distinguished by its flexibility
            and multifunctionality. It is antistatic according to the
            MILSPEC/ESA standard and designed for industrial use
            where high quality is demanded and for repairs and
            laboratory applications.
            The station can alternatively be operated with various
            soldering and desoldering tools. Besides the POWER TOOL
            and TECH TOOL universal soldering irons, the CHIP TOOL de-
            soldering tweezers can be connected.
            The tools are automatically detected when inserted, and the
            control characteristics are adapted accordingly. The soldering
            and desoldering tips are then always connected with high im-                               Wide
            pedance to the front-installed potential equalization socket.                             range of
            By just three buttons and a simple menu guide the desired                                 soldering
                                                                                                       tips!
            temperatures, the unit of temperature (°C/°F), the standby   DIG20A84
            time of 0 to 60 minutes, a tip offset and calibration feature   with POWER TOOL soldering iron and Ersa SENSOTRONIC control system
            and a three-character password-controlled lock can all be set.
                                                       Soldering tip series 832 and 842, see page 40, fig. with 0A08MSET
            The calibration feature allows the actual soldering tip tempe-
            rature to be precisely adjusted to the temperature shown in
            the LED display. For this purpose a suitable soldering tip
            temperature measuring device, such as the Ersa DTM series
            (see page 31), is required.
            The Ersa DIGITAL 2000 A soldering station regulates the
            temperature through a digital PID algorithm, optimized for
            very precise and fast temperature control.
                                                       POWER TOOL
            All connectable soldering and desoldering devices have   with Ersa SENSOTRONIC control system
            enormous power reserves thanks to the PTC heating   Soldering tip series 832 and 842, see page 40
            elements located inside the tips.
            At a tip temperature of 280 °C the following power is
            available, for example:
               POWER TOOL – 105 W
               TECH TOOL – 70 W
               CHIP TOOL – 2 x 30 W
            All soldering and desoldering tools are operated at the low   TECH TOOL
            voltage of 24 V and have a highly flexible, heat-resistant and
            antistatic connecting cable.               with Ersa SENSOTRONIC control system
                                                       Soldering tip series 612, see page 41
            For tip changes we recommend the tip exchanger 3ZT00164
            with flat nose pliers and side cutter (see page 32).











                                                       CHIP TOOL
                                                       with Ersa RESISTRONIC control system
                                                        Desoldering tip series 422/452, see page 43



            Order no.   Description                     Rating/             Heating time  Temperature    Weight
                                                        Voltage                          range        (w/o cable )
            0DIG20A84   DIGITAL 2000 A electronic station, complete, with  80 W/230 V, 50 – 60 Hz/24 V   50 – 450 °C  1.25 kg
                        POWER TOOL soldering iron 0840CDJ with   80 W (350 °C)  approx. 40 s (280 °C)  approx. 50 g
                        soldering tip 0842CDLF and holder 0A42, complete
            0DIG20A64   DIGITAL 2000 A electronic station, complete, with  80 W/230 V, 50 – 60 Hz/24 V  50 – 450 °C
                        TECH TOOL soldering iron 0640ADJ with   60 W (350 °C)  approx. 12 s (280 °C)  approx. 50 g
                        soldering tip 0612ADLF and holder 0A42, complete
            0DIG20A45   DIGITAL 2000 A electronic station, complete, with  80 W/230 V, 50 – 60 Hz/24 V  150 – 450 °C
                        CHIP TOOL desoldering tweezers 0450MDJ with   2 x 20 W (350 °C)  subject to tips  approx. 75 g
                        tips 0452MDLF020 and holder 0A43, complete
