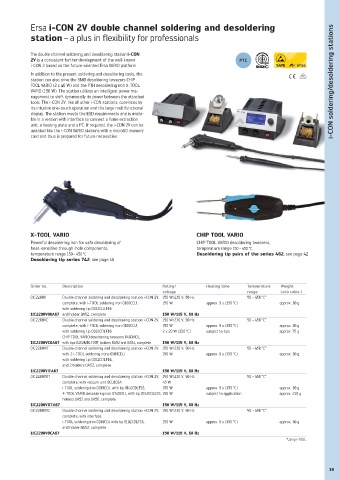

Ersa i-CON 2V double channel soldering and desoldering
station – a plus in flexibility for professionals
The double channel soldering and desoldering station i-CON
2V is a consistent further development of the well-known PTC
i-CON 2 based on the future-oriented Ersa VARIO platform.
In addition to the present soldering and desoldering tools, the
station can also drive the SMD desoldering tweezers CHIP i-CON soldering/desoldering stations
TOOL VARIO (2 x 40 W) and the PTH desoldering iron X-TOOL
VARIO (150 W). The station utilizes an intelligent power ma-
nagement to shift dynamically its power between the attached
tools. The i-CON 2V, like all other i-CON stations, convinces by
its intuitive one-touch operation and the large multifunctional
display. The station meets the ESD requirements and is availa-
ble in a version with interface to connect a fume extraction
unit, a heating plate and a PC. If required, the i-CON 2V can be
updated like the i-CON VARIO stations with a microSD memory
card and thus is prepared for future necessities.
X-TOOL VARIO CHIP TOOL VARIO
Powerful desoldering iron for safe desoldering of CHIP TOOL VARIO desoldering tweezers,
heat-sensitive through-hole components, temperature range 150 – 450 °C
temperature range 150 – 450 °C Desoldering tip pairs of the series 462, see page 42
Desoldering tip series 742, see page 46
Order no. Description Rating/ Heating time Temperature Weight
voltage range (w/o cable )
0IC2200V Double channel soldering and desoldering station i-CON 2V, 150 W/230 V, 50 Hz 50 – 450 °C *
complete, with i-TOOL soldering iron 0100CDJ, 150 W approx. 9 s (350 °C) approx. 30 g
with soldering tip 0102CDLF16
1IC2200V00A67 and holder 0A52, complete 150 W/115 V, 60 Hz
0IC2200VC Double channel soldering and desoldering station i-CON 2V, 150 W/230 V, 50 Hz 50 – 450 °C *
complete, with i-TOOL soldering iron 0100CDJ, 150 W approx. 9 s (350 °C) approx. 30 g
with soldering tip 0102CDLF16 2 x 20 W (350 °C) subject to tips approx. 75 g
CHIP TOOL VARIO desoldering tweezers 0460MDJ,
1IC2200VC0A67 with tips 0462MDLF007, holders 0A52 and 0A54, complete 150 W/115 V, 60 Hz
0IC2200VIT Double channel soldering and desoldering station i-CON 2V, 150 W/230 V, 50 Hz 50 – 450 °C *
with 2 i-TOOL soldering irons 0100CDJ, 150 W approx. 9 s (350 °C) approx. 30 g
with soldering tip 0102CDLF16,
and 2 holders 0A52, complete
1IC2200VITA67 150 W/115 V, 60 Hz
0IC2200VXT Double channel soldering and desoldering station i-CON 2V, 150 W/230 V, 50 Hz 50 – 450 °C *
complete, with vacuum unit 0CU103A 45 W
i-TOOL soldering iron 0100CDJ, with tip 0102CDLF16, 150 W approx. 9 s (350 °C) approx. 30 g
X-TOOL VARIO desoldering iron 0740EDJ, with tip 0742ED1225, 150 W subject to application approx. 210 g
holders 0A52 and 0A56, complete
1IC2200VXTA67 150 W/115 V, 60 Hz
0IC2200V0C Double channel soldering and desoldering station i-CON 2V, 150 W/230 V, 50 Hz 50 – 450 °C *
complete, with interface
i-TOOL soldering iron 0100CDJ with tip 0102CDLF16, 150 W approx. 9 s (350 °C) approx. 30 g
and holder 0A52, complete
1IC2200V0CA67 150 W/115 V, 60 Hz
* Using i-TOOL.
