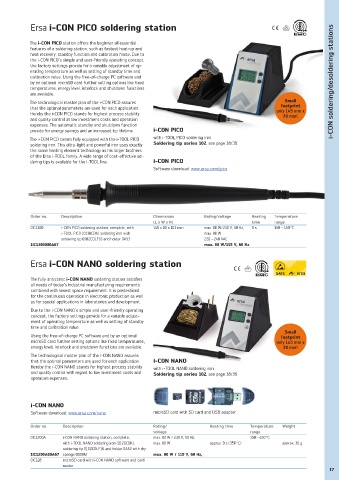

Ersa i-CON PICO soldering station

The i-CON PICO station offers the beginner all essential
features of a soldering station, such as fastest heat-up and
heat recovery, standby function and calibration mode. Due to
the i-CON PICO´s simple and user-friendly operating concept,
the factory settings provide for a variable adjustment of op-
erating temperature as well as setting of standby time and
calibration value. Using the free-of-charge PC software and
by an optional microSD card further setting options like fixed i-CON soldering/desoldering stations
temperatures, energy level, interlock and shutdown functions
are available.
The technological master plan of the i-CON PICO assures Small
footprint
that the optimal parameters are used for each application. only 145 mm x
Hereby the i-CON PICO stands for highest process stability 80 mm!
and quality control at low investment costs and operation
expenses. The automatic standby and shutdown function
provide for energy savings and an increased tip lifetime. i-CON PICO
The i-CON PICO comes fully equipped with the i-TOOL PICO with i-TOOL PICO soldering iron
soldering iron. This ultra-light and powerful iron uses exactly Soldering tip series 102, see page 38/39
the same heating element technology as his larger brothers
of the Ersa i-TOOL family. A wide range of cost-effective sol-
dering tips is available for the i-TOOL line. i-CON PICO
Software download: www.ersa.com/pico

Order no. Description Dimensions Rating/voltage Heating Temperature
(L x W x H) time range
0IC1300 i-CON PICO soldering station, complete, with 145 x 80 x 103 mm max. 80 W/230 V, 50 Hz, 9 s 150 – 450 °C
i-TOOL PICO (0130CDK) soldering iron with max. 80 W
soldering tip 0102CDLF16 and holder 0A53 220 – 240 VAC
1IC1300000A67 max. 80 W/115 V, 60 Hz

Ersa i-CON NANO soldering station

The fully antistatic i-CON NANO soldering station satisfies
all needs of today’s industrial manufacturing requirements
combined with lowest space requirement. It is predestined
for the continuous operation in electronic production as well
as for special applications in laboratories and development.
Due to the i-CON NANO´s simple and user-friendly operating
concept, the factory settings provide for a variable adjust-
ment of operating temperature as well as setting of standby
time and calibration value.
Small
Using the free-of-charge PC software and by an optional footprint
microSD card further setting options like fixed temperatures, only 145 mm x
energy level, interlock and shutdown functions are available. 80 mm!
The technological master plan of the i-CON NANO assures
that the optimal parameters are used for each application. i-CON NANO
Hereby the i-CON NANO stands for highest process stability with i-TOOL NANO soldering iron
and quality control with regard to low investment costs and Soldering tip series 102, see page 38/39
operation expenses.

i-CON NANO
Software download: www.ersa.com/nano microSD card with SD card and USB adapter

Order no. Description Rating/ Heating time Temperature Weight
voltage range
0IC1200A i-CON NANO soldering station, complete, max. 80 W / 230 V, 50 Hz, 150 – 450 °C
with i-TOOL NANO soldering iron (0120CDK), max. 80 W approx. 9 s (350 °C) approx. 30 g
soldering tip 0102CDLF16 and holder 0A52 with dry
1IC1200A00A67 sponge 0008M max. 80 W / 115 V, 60 Hz,
0IC128 microSD card with i-CON NANO software and card
reader
17
