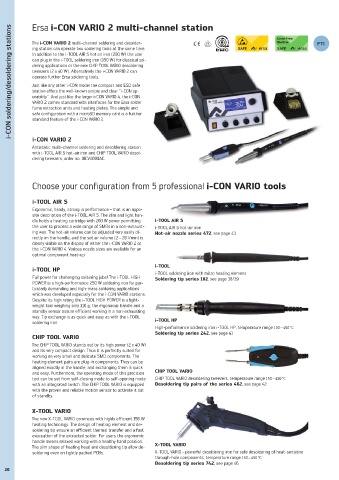

Ersa i-CON VARIO 2 multi-channel station
i-CON soldering/desoldering stations

The i-CON VARIO 2 multi-channel soldering and desolder- PTC
ing station can operate two soldering tools at the same time:
In addition to the i-TOOL AIR S hot air iron (200 W) the user
can plug in the i-TOOL soldering iron (150 W) for classical sol-
dering applications or the new CHIP TOOL VARIO desoldering
tweezers (2 x 40 W). Alternatively the i-CON VARIO 2 can
operate further Ersa soldering tools.
Just like any other i-CON model the compact and ESD safe
station offers the well-known simple and clear “i-CON op-
erability”. And just like the larger i-CON VARIO 4, the i-CON
VARIO 2 comes standard with interfaces for the Ersa solder
fume extraction units and heating plates. The simple and
safe configuration with a microSD memory card is a further
standard feature of the i-CON VARIO 2.

i-CON VARIO 2
Antistatic multi-channel soldering and desoldering station
with i-TOOL AIR S hot-air iron and CHIP TOOL VARIO desol-
dering tweezers, order no. 0ICV2000AC.

Choose your configuration from 5 professional i-CON VARIO tools

i-TOOL AIR S
Ergonomic, handy, strong in performance – that is an appo-
site description of the i-TOOL AIR S. The slim and light han-
dle holds a heating cartridge with 200 W power permitting i-TOOL AIR S
the user to process a wide range of SMDs in a non-exhaust- i-TOOL AIR S hot-air iron
ing way. The hot-air volume can be adjusted very easily di- Hot-air nozzle series 472, see page 43
rectly on the handle, and the set air volume (2 – 20 l/min) is
clearly visible on the display of either the i-CON VARIO 2 or
the i-CON VARIO 4. Various nozzle sizes are available for an
optimal component heat-up.

i-TOOL
i-TOOL HP
i-TOOL soldering iron with micro heating element
Full power for challenging soldering jobs! The i-TOOL HIGH Soldering tip series 102, see page 38/39
POWER is a high-performance 250 W soldering iron for par-
ticularly demanding and high-mass soldering applications
which was developed especially for the i-CON VARIO stations.
Despite its high rating the i-TOOL HIGH POWER is a light-
weight tool weighing only 110 g; the ergonomic handle and a
standby sensor assure efficient working in a non-exhausting
way. Tip exchange is as quick and easy as with the i-TOOL i-TOOL HP
soldering iron.
High-performance soldering iron i-TOOL HP, temperature range 150 – 450 °C
Soldering tip series 242, see page 41
CHIP TOOL VARIO
The CHIP TOOL VARIO stands out by its high power (2 x 40 W)
and its very compact design. Thus it is perfectly suited for
working on very small and delicate SMD components. The
heating element pairs are plug-in components. They can be
aligned exactly in the handle, and exchanging them is quick
and easy. Furthermore, the operating mode of this precision CHIP TOOL VARIO
tool can be set from self-closing mode to self-opening mode CHIP TOOL VARIO desoldering tweezers, temperature range 150 – 450 °C
with an integrated switch. The CHIP TOOL VARIO is equipped Desoldering tip pairs of the series 462, see page 42
with the proven and reliable motion sensor to activate it out
of standby.

X-TOOL VARIO
The new X-TOOL VARIO convinces with highly efficient 150 W
heating technology. The design of heating element and de-
soldering tip ensure an efficient thermal transfer and a fast
evacuation of the extracted solder. For users the ergonomic
handle means relaxed working with a healthy hand position.
The slim shape of heating head and desoldering tip allow de- X-TOOL VARIO
soldering even on tightly packed PCBs. X-TOOL VARIO – powerful desoldering iron for safe desoldering of heat-sensitive
through-hole components, temperature range 150 – 450 °C
Desoldering tip series 742, see page 46
