P. 18

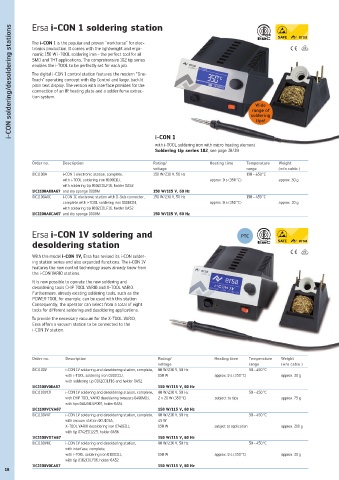

Ersa i-CON 1 soldering station
     i-CON soldering/desoldering stations

            The i-CON 1 is the popular and proven “workhorse” for elec-
            tronics production. It comes with the lightweight and ergo-
            nomic 150 W i-TOOL soldering iron – the perfect tool for all
            SMD and THT applications. The comprehensive 102 tip series
            enables the i-TOOL to be perfectly set for each job.
            The digital i-CON 1 control station features the modern “One-
            Touch” operating concept with iOp Control and large, backlit
            plain text display. The version with interface provides for the
            connection of an IR heating plate and a solder fume extrac-
            tion system.
                                                                                           Wide
                                                                                          range of
                                                                                         soldering
                                                                                           tips!

                                                       i-CON 1
                                                       with i-TOOL soldering iron with micro heating element
                                                       Soldering tip series 102, see page 38/39

            Order no.  Description                     Rating/             Heating time  Temperature   Weight
                                                       voltage                          range      (w/o cable )
            0IC1100A   i-CON 1 electronic station, complete,   150 W/230 V, 50 Hz       150 – 450 °C
                       with i-TOOL soldering iron 0100CDJ,                 approx. 9 s (350 °C)    approx. 30 g
                       with soldering tip 0102CDLF16, holder 0A52
            1IC1100A00A67 and dry sponge 0008M         150 W/115 V, 60 Hz
            0IC1100A0C  i-CON 1C electronic station with D-Sub connector,   150 W/230 V, 50 Hz  150 – 450 °C
                       complete with i-TOOL soldering iron 0100CDJ,        approx. 9 s (350 °C)    approx. 30 g
                       with soldering tip 0102CDLF16, holder 0A52
            1IC1100A0CA67 and dry sponge 0008M         150 W/115 V, 60 Hz


            Ersa i-CON 1V soldering and                                               PTC
            desoldering station


            With the model i-CON 1V, Ersa has revised its i-CON solder-
            ing station series and also expanded functions. The i-CON 1V
            features the new control technology users already know from
            the i-CON VARIO stations.
            It is now possible to operate the new soldering and
            desoldering tools CHIP TOOL VARIO and X-TOOL VARIO.
            Furthermore, already existing soldering tools, such as the
            POWER TOOL for example, can be used with this station.
            Consequently, the operator can select from a total of eight
            tools for different soldering and desoldering applications.
            To provide the necessary vacuum for the X-TOOL VARIO,
            Ersa offers a vacuum station to be connected to the
            i-CON 1V station.




            Order no.   Description                      Rating/            Heating time  Temperature   Weight
                                                         voltage                        range       (w/o cable )
            0IC1100V    i-CON 1V soldering and desoldering station, complete,  80 W/230 V, 50 Hz  50 – 450 °C
                        with i-TOOL soldering iron 0100CDJ,  150 W          approx. 9 s (350 °C)    approx. 30 g
                        with soldering tip 0102CDLF16 and holder 0A52
            1IC1100V00A67                                150 W/115 V, 60 Hz
            0IC1100VCV  i-CON 1V soldering and desoldering station, complete,  80 W/230 V, 50 Hz  50 – 450 °C
                        with CHIP TOOL VARIO desoldering tweezers 0460MDJ,  2 x 20 W (350 °C)  subject to tips  approx. 75 g
                        with tips 0462MDLF007, holder 0A54
            1IC1100VCVA67                                150 W/115 V, 60 Hz
            0IC1100VXT  i-CON 1V soldering and desoldering station, complete,  80 W/230 V, 50 Hz  50 – 450 °C
                        with vacuum station 0CU103A,     45 W
                        X-TOOL VARIO desoldering iron 0740EDJ,  150 W       subject to application  approx. 210 g
                        with tip 0742ED1225, holder 0A56
            1IC1100VXTA67                                150 W/115 V, 60 Hz
            0IC1100V0C  i-CON 1V soldering and desoldering station,   80 W/230 V, 50 Hz  50 – 450 °C
                        with interface, complete,
                        with i-TOOL soldering iron 0100CDJ,   150 W         approx. 9 s (350 °C)    approx. 30 g
                        with tip 0102CDLF16, holder 0A52
            1IC1100V0CA67                                150 W/115 V, 60 Hz
