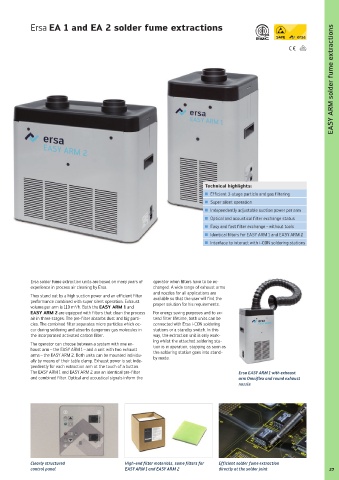

Ersa EA 1 and EA 2 solder fume extractions EASY ARM solder fume extractions

Technical highlights:
 Efficient 3-stage particle and gas filtering
 Super silent operation
 Independently adjustable suction power per arm
 Optical and acoustical filter exchange status
 Easy and fast filter exchange – without tools
 Identical filters for EASY ARM 1 and EASY ARM 2
 Interface to interact with i-CON soldering stations

Ersa solder fume extraction units are based on many years of operator when filters have to be ex-
experience in process air cleaning by Ersa. changed. A wide range of exhaust arms
and nozzles for all applications are
They stand out by a high suction power and an efficient filter available so that the user will find the
performance combined with super silent operation. Exhaust proper solution for his requirements.
volume per arm is 110 m³/h. Both the EASY ARM 1 and
EASY ARM 2 are equipped with filters that clean the process For energy saving purposes and to ex-
air in three stages: The pre-filter absorbs dust and big parti- tend filter lifetime, both units can be
cles. The combined filter separates micro particles which oc- connected with Ersa i-CON soldering
cur during soldering and absorbs dangerous gas molecules in stations or a standby switch. In this
the incorporated activated carbon filter. way, the extraction unit is only work-
ing whilst the attached soldering sta-
The operator can choose between a system with one ex- tion is in operation, stopping as soon as
haust arm – the EASY ARM 1 – and a unit with two exhaust the soldering station goes into stand-
arms – the EASY ARM 2. Both units can be mounted individu- by mode.
ally by means of their table clamp. Exhaust power is set inde-
pendently for each extraction arm at the touch of a button.
The EASY ARM 1 and EASY ARM 2 use an identical pre-filter Ersa EASY ARM 1 with exhaust
and combined filter. Optical and acoustical signals inform the arm Omniflex and round exhaust
nozzle

Clearly structured High-end filter materials, same filters for Efficient solder fume extraction
control panel EASY ARM 1 and EASY ARM 2 directly at the solder joint 27
