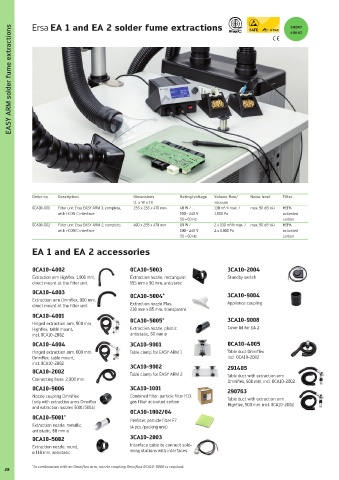

Ersa EA 1 and EA 2 solder fume extractions                                                 super
     EASY ARM solder fume extractions
                                                                                                       silent


































            Order no.  Description              Dimensions      Rating/voltage  Volume flow/  Noise level  Filter
                                                (L x W x H)                 vacuum
                                                                                3
            0CA10-001  Filter unit Ersa EASY ARM 1, complete,   255 x 255 x 470 mm  40 W /   130 m /h max. /  max. 50 dB (A)  HEPA
                     with i-CON C interface                     100 – 240 V  1,800 Pa               activated
                                                                50 – 60 Hz                          carbon
            0CA10-002  Filter unit Ersa EASY ARM 2, complete,   490 x 255 x 470 mm  80 W /   2 x 130 m /h max. /  max. 50 dB (A)  HEPA
                                                                                  3
                     with i-CON C interface                     100 – 240 V  2 x 1,800 Pa           activated
                                                                50 – 60 Hz                          carbon
            EA 1 and EA 2  accessories


            0CA10-4002                         0CA10-5003                        3CA10-2004
            Extraction arm Highflex, 1,000 mm,   Extraction nozzle, rectangular,  Standby switch
            direct mount at the filter unit    155 mm x 90 mm, antistatic
            0CA10-4003                         0CA10-5004 *                      3CA10-9004
            Extraction arm Omniflex, 900 mm,
            direct mount at the filter unit    Extraction nozzle Plus,           Appliance coupling
                                               230 mm x 85 mm, transparent
            0CA10-4001                                    *                      3CA10-9008
            Hinged extraction arm, 500 mm,     0CA10-5005
            Highflex, table mount,             Extraction nozzle, plastic        Cover lid for EA 2
            incl. 0CA10-2002                   antistatic, 60 mm ø
            0CA10-4004                         3CA10-9001                        0CA10-4005
            Hinged extraction arm, 600 mm,     Table clamp for EASY ARM 1        Table duct Omniflex
            Omniflex, table mount,                                               incl. 0CA10-2002
            incl. 0CA10-2002                   3CA10-9002
            0CA10-2002                                                           291405
                                               Table clamp for EASY ARM 2        Table duct with extraction arm
            Connecting hose, 2,000 mm                                            Omniflex, 600 mm, incl. 0CA10-2002
            0CA10-9006                         3CA10-1001                        290763
            Nozzle coupling Omniflex           Combined filter, particle filter H13,   Table duct with extraction arm
            (only with extraction arms Omniflex  gas filter activated carbon     Highflex, 500 mm, incl. 0CA10-2002
            and extraction nozzles 5001/5004)
                                               0CA10-1002/04
            0CA10-5001 *
                                               Prefilter, particle filter F7
            Extraction nozzle, metallic,       (4 pcs./packing unit)
            antistatic, 60 mm ø
            0CA10-5002                         3CA10-2003
            Extraction nozzle, round,          Interface cable to connect sold-
            ø 118 mm, antistatic               ering stations with interfaces

            * In combination with an Omniflex arm, nozzle coupling Omniflex 0CA10-9006 is required.
