P. 33

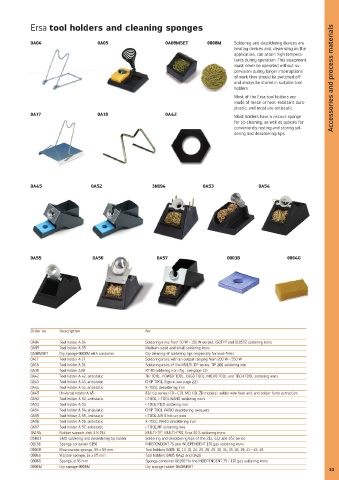

Ersa tool holders and cleaning sponges
0A04 0A05 0A08MSET 0008M Soldering and desoldering devices are
heating devices and, depending on the
application, can attain high tempera-
tures during operation. This equipment
must never be operated without su-
pervision; during longer interruptions
of work they should be switched off Accessories and process materials
and always be stored in suitable tool
holders.
Most of the Ersa tool holders are
made of metal or heat-resistant duro-
plastic, and most are antistatic.
0A17 0A18 0A42
Most holders have a viscous sponge
for tip cleaning, as well as options for
conveniently resting and storing sol-
dering and desoldering tips.
0A45 0A52 3N194 0A53 0A54
0A55 0A56 0A57 0003B 0004G
Order no. Description for
0A04 Tool holder A 04 Soldering irons from 50 W – 150 W output; ISOTYP and 0185PZ soldering irons
0A05 Tool holder A 05 Medium-sized and small soldering irons
0A08MSET Dry sponge 0008M with container Dry cleaning of soldering tips (especially for lead-free)
0A17 Tool holder A 17 Soldering irons with an output ranging from 200 W – 550 W
0A18 Tool holder A 18 Soldering irons of the MULTI-TIP series; TIP 260 soldering iron
0A39 Tool holder A39 RT 80 soldering iron (fig., see page 13)
0A42 Tool holder A 42, antistatic TIP TOOL, POWER TOOL, ERGO TOOL, MICRO TOOL and TECH TOOL soldering irons
0A43 Tool holder A 43, antistatic CHIP TOOL (figure, see page 22)
0A44 Tool holder A 44, antistatic X-TOOL desoldering iron
0A45 Universal holder A 45 832 tip series (C8 – C18, MD, QD, ZD models), solder wire feed unit and solder fume extraction
0A52 Tool holder A 52, antistatic i-TOOL, i-TOOL NANO soldering irons
0A53 Tool holder A 53 i-TOOL PICO soldering iron
0A54 Tool holder A 54, antistatic CHIP TOOL VARIO desoldering tweezers
0A55 Tool holder A 55, antistatic i-TOOL AIR S hot-air iron
0A56 Tool holder A 56, antistatic X-TOOL VARIO desoldering iron
0A57 Tool holder A 57, antistatic i-TOOL HP soldering iron
3N194 Rubber support disk 3 N 194 MULTI-TIP, MULTI-PRO, Ersa 30 S soldering irons
0SH03 SMD soldering and desoldering tip holder Soldering and desoldering tips of the 212, 422 and 452 series
0G156 Sponge container G156 INDEPENDENT 75 and INDEPENDENT 130 gas soldering irons
0003B Blue viscose sponge, 55 x 55 mm Tool holders 0A09, 10, 13, 16, 24, 25, 28, 29, 30, 34, 35, 36, 39, 41 – 45, 48
0004G Viscose sponge, 34 x 65 mm Tool holders 0A05, 0A21 and 0A26
0006G Sponge, ø 36 mm Sponge container 0G156 for the INDEPENDENT 75 / 130 gas soldering irons
0008M Dry sponge 0008M Dry sponge holder 0A08MSET
33
