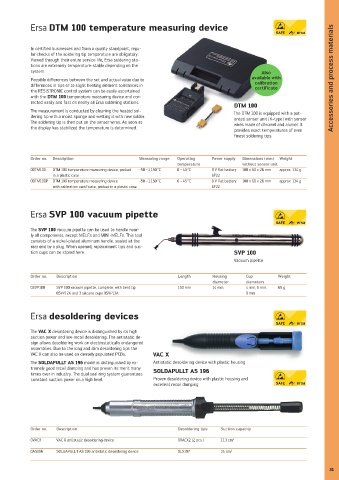

Ersa DTM 100 temperature measuring device

In certified businesses and from a quality standpoint, regu-
lar checks of the soldering tip temperature are obligatory.
Viewed through their entire service life, Ersa soldering sta-
tions are extremely temperature-stable depending on the
system. Also
Possible differences between the set and actual value due to available with Accessories and process materials
differences in tips or to slight heating element tolerances in calibration
certificate
the RESISTRONIC control system can be easily ascertained
with the DTM 100 temperature measuring device and cor-
rected easily and fast on nearly all Ersa soldering stations.
DTM 100
The measurement is conducted by cleaning the heated sol- The DTM 100 is equipped with a pat-
dering tip with a moist sponge and wetting it with new solder. ented sensor unit (K-type) with sensor
The soldering tip is then put on the sensor wires. As soon as wires made of chromel and alumel. It
the display has stabilized the temperature is determined.
provides exact temperatures of even
finest soldering tips.

Order no. Description Measuring range Operating Power supply Dimensions (mm) Weight
temperature without sensor unit
0DTM100 DTM 100 temperature measuring device, packed -50 – 1,150 °C 0 – 45 °C 9 V flat battery 100 x 60 x 26 mm approx. 134 g
in a plastic case 6F22
0DTM100P DTM 100 temperature measuring device -50 – 1,150 °C 0 – 45 °C 9 V flat battery 100 x 60 x 26 mm approx. 134 g
with calibration certificate, packed in a plastic case 6F22

Ersa SVP 100 vacuum pipette

The SVP 100 vacuum pipette can be used to handle near-
ly all components, except MELFs and MINI-MELFs. This tool
consists of a nickel-plated aluminum handle, sealed at the
rear end by a plug. When opened, replacement tips and suc-
tion cups can be stored here. SVP 100
Vacuum pipette

Order no. Description Length Housing Cup Weight
diameter diameters
0SVP100 SVP 100 vacuum pipette, complete, with bent tip 150 mm 14 mm 4 mm, 6 mm, 69 g
0SVP12K and 3 silicone cups 0SVP13A 9 mm

Ersa desoldering devices

The VAC X desoldering device is distinguished by its high
suction power and low-recoil desoldering. The antistatic de-
sign allows desoldering work on electrostatically endangered
assemblies. Due to the long and slim desoldering tips the
VAC X can also be used on densely populated PCBs. VAC X
The SOLDAPULLT AS 196 model is distinguished by ex- Antistatic desoldering device with plastic housing
tremely good recoil damping and has proven its merit many SOLDAPULLT AS 196
times over in industry. The dual seal ring system guarantees
constant suction power on a high level. Proven desoldering device with plastic housing and
excellent recoil damping

Order no. Description Desoldering tips Suction capacity
0VACX VAC X antistatic desoldering device 0VACX2 (2 pcs.) 11,3 cm³
0AS196 SOLDAPULLT AS 196 antistatic desoldering device 0LS197 34 cm³
