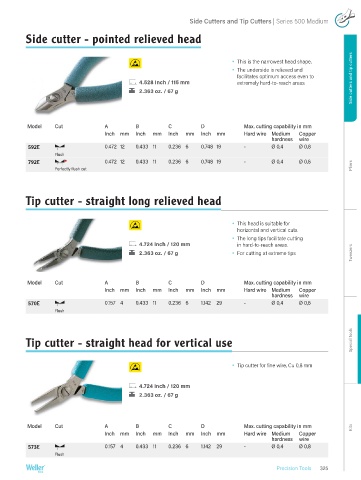

Side Cutters and Tip Cutters | Series 500 Medium

Side cutter - pointed relieved head

Ÿ This is the narrowest head shape.
Ÿ The underside is relieved and
facilitates optimum access even to Side cutters and tip cutters
4.528 Inch / 115 mm extremely hard-to-reach areas
2.363 oz. / 67 g

Model Cut A B C D Max. cutting capability in mm
Inch mm Inch mm Inch mm Inch mm Hard wire Medium Copper
hardness wire
592E 0.472 12 0.433 11 0.236 6 0.748 19 - Ø 0,4 Ø 0,8
Flush
792E 0.472 12 0.433 11 0.236 6 0.748 19 - Ø 0,4 Ø 0,6
Perfectly flush cut Pliers

Tip cutter - straight long relieved head

Ÿ This head is suitable for
horizontal and vertical cuts.
Ÿ The long tips facilitate cutting
4.724 Inch / 120 mm in hard-to-reach areas.
Tweezers
2.363 oz. / 67 g Ÿ For cutting at extreme tips

Model Cut A B C D Max. cutting capability in mm
Inch mm Inch mm Inch mm Inch mm Hard wire Medium Copper
hardness wire
570E 0.157 4 0.433 11 0.236 6 1.142 29 - Ø 0,4 Ø 0,6
Flush

Special tools
Tip cutter - straight head for vertical use

Ÿ Tip cutter for fine wire, Cu 0,8 mm

4.724 Inch / 120 mm
2.363 oz. / 67 g

Model Cut A B C D Max. cutting capability in mm Kits
Inch mm Inch mm Inch mm Inch mm Hard wire Medium Copper
hardness wire
573E 0.157 4 0.433 11 0.236 6 1.142 29 - Ø 0,4 Ø 0,8
Flush

Precision Tools 325
