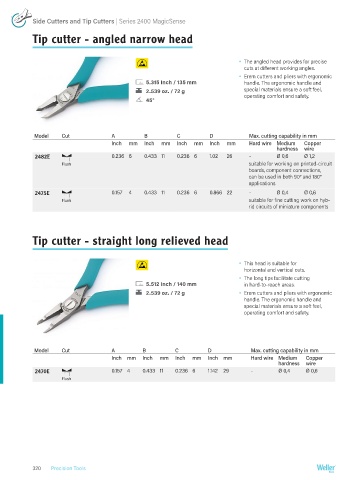

P. 320
Side Cutters and Tip Cutters | Series 2400 MagicSense
Tip cutter - angled narrow head
The angled head provides for precise
cuts at different working angles.
Erem cutters and pliers with ergonomic
5.315 Inch / 135 mm handle. The ergonomic handle and
2.539 oz. / 72 g special materials ensure a soft feel,
operating comfort and safety.
45°
Model Cut A B C D Max. cutting capability in mm
Inch mm Inch mm Inch mm Inch mm Hard wire Medium Copper
hardness wire
2482E 0.236 6 0.433 11 0.236 6 1.02 26 - Ø 0,6 Ø 1,2
Flush suitable for working on printed-circuit
boards, component connections,
can be used in both 90° and 180°
applications
2475E 0.157 4 0.433 11 0.236 6 0.866 22 - Ø 0,4 Ø 0,6
Flush suitable for fine cutting work on hyb-
rid circuits of miniature components
Tip cutter - straight long relieved head
This head is suitable for
horizontal and vertical cuts.
The long tips facilitate cutting
5.512 Inch / 140 mm in hard-to-reach areas.
2.539 oz. / 72 g Erem cutters and pliers with ergonomic
handle. The ergonomic handle and
special materials ensure a soft feel,
operating comfort and safety.
Model Cut A B C D Max. cutting capability in mm
Inch mm Inch mm Inch mm Inch mm Hard wire Medium Copper
hardness wire
2470E 0.157 4 0.433 11 0.236 6 1.142 29 - Ø 0,4 Ø 0,6
Flush
320 Precision Tools
