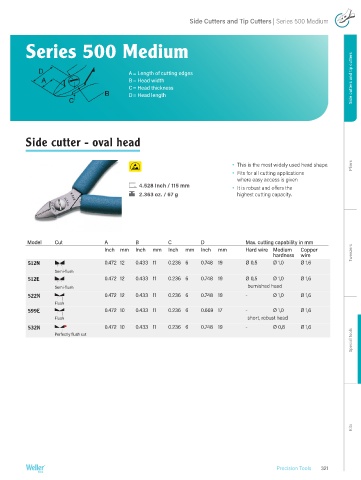

Page 321 - weller
P. 321
Side Cutters and Tip Cutters | Series 500 Medium
Series 500 Medium
A = Length of cutting edges
B = Head width Side cutters and tip cutters
C = Head thickness
D = Head length
Side cutter - oval head
This is the most widely used head shape. Pliers
Fits for all cutting applications
where easy access is given
4.528 Inch / 115 mm It is robust and offers the
2.363 oz. / 67 g highest cutting capacity.
Model Cut A B C D Max. cutting capability in mm
Inch mm Inch mm Inch mm Inch mm Hard wire Medium Copper
hardness wire Tweezers
512N 0.472 12 0.433 11 0.236 6 0.748 19 Ø 0,5 Ø 1,0 Ø 1,6
Semi-flush
512E 0.472 12 0.433 11 0.236 6 0.748 19 Ø 0,5 Ø 1,0 Ø 1,6
Semi-flush burnished head
522N 0.472 12 0.433 11 0.236 6 0.748 19 - Ø 1,0 Ø 1,6
Flush
599E 0.472 10 0.433 11 0.236 6 0.669 17 - Ø 1,0 Ø 1,6
Flush short, robust head
532N 0.472 10 0.433 11 0.236 6 0.748 19 - Ø 0,8 Ø 1,6
Special tools
Perfectly flush cut
