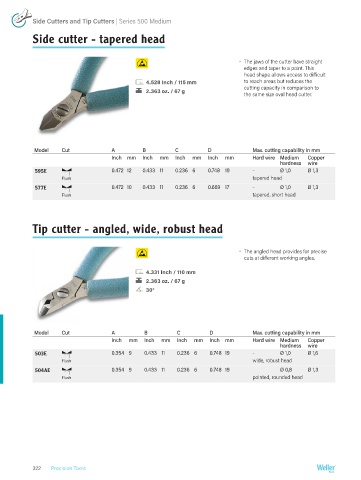

Side Cutters and Tip Cutters | Series 500 Medium

Side cutter - tapered head

Ÿ The jaws of the cutter have straight
edges and taper to a point. This
head shape allows access to difficult
4.528 Inch / 115 mm to reach areas but reduces the
2.363 oz. / 67 g cutting capacity in comparison to
the same size oval head cutter.

Model Cut A B C D Max. cutting capability in mm
Inch mm Inch mm Inch mm Inch mm Hard wire Medium Copper
hardness wire
595E 0.472 12 0.433 11 0.236 6 0.748 19 - Ø 1,0 Ø 1,3
Flush tapered head
577E 0.472 10 0.433 11 0.236 6 0.669 17 - Ø 1,0 Ø 1,3
Flush tapered, short head

Tip cutter - angled, wide, robust head

Ÿ The angled head provides for precise
cuts at different working angles.

4.331 Inch / 110 mm
2.363 oz. / 67 g
30°

Model Cut A B C D Max. cutting capability in mm
Inch mm Inch mm Inch mm Inch mm Hard wire Medium Copper
hardness wire
503E 0.354 9 0.433 11 0.236 6 0.748 19 - Ø 1,0 Ø 1,6
Flush wide, robust head
504AE 0.354 9 0.433 11 0.236 6 0.748 19 Ø 0,8 Ø 1,3
Flush pointed, rounded head

322 Precision Tools
