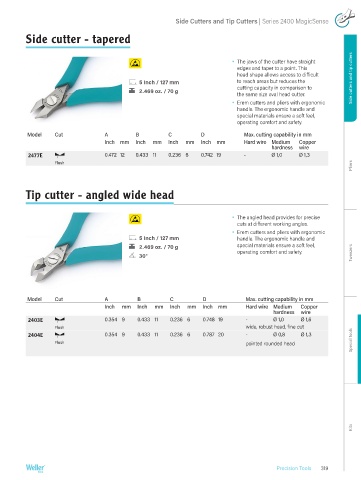

Page 319 - weller

Side Cutters and Tip Cutters | Series 2400 MagicSense

Side cutter - tapered

Ÿ The jaws of the cutter have straight
edges and taper to a point. This
head shape allows access to difficult
5 Inch / 127 mm to reach areas but reduces the Side cutters and tip cutters
2.469 oz. / 70 g cutting capacity in comparison to
the same size oval head cutter.
Ÿ Erem cutters and pliers with ergonomic
handle. The ergonomic handle and
special materials ensure a soft feel,
operating comfort and safety.

Model Cut A B C D Max. cutting capability in mm
Inch mm Inch mm Inch mm Inch mm Hard wire Medium Copper
hardness wire
2477E 0.472 12 0.433 11 0.236 6 0.742 19 - Ø 1,0 Ø 1,3
Flush
Pliers

Tip cutter - angled wide head

Ÿ The angled head provides for precise
cuts at different working angles.
Ÿ Erem cutters and pliers with ergonomic
5 Inch / 127 mm handle. The ergonomic handle and
2.469 oz. / 70 g special materials ensure a soft feel,
30° operating comfort and safety. Tweezers

Model Cut A B C D Max. cutting capability in mm
Inch mm Inch mm Inch mm Inch mm Hard wire Medium Copper
hardness wire
2403E 0.354 9 0.433 11 0.236 6 0.748 19 - Ø 1,0 Ø 1,6
Flush wide, robust head, fine cut
2404E 0.354 9 0.433 11 0.236 6 0.787 20 - Ø 0,8 Ø 1,3
Flush pointed rounded head Special tools

Kits

Precision Tools 319
