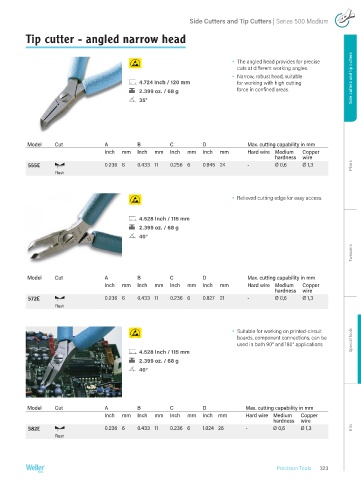

Page 323 - weller

Side Cutters and Tip Cutters | Series 500 Medium

Tip cutter - angled narrow head

Ÿ The angled head provides for precise
cuts at different working angles.
Ÿ Narrow, robust head, suitable Side cutters and tip cutters
4.724 Inch / 120 mm for working with high cutting
2.399 oz. / 68 g force in confined areas.
35°

Model Cut A B C D Max. cutting capability in mm
Inch mm Inch mm Inch mm Inch mm Hard wire Medium Copper
hardness wire
555E 0.236 6 0.433 11 0.256 6 0.945 24 - Ø 0,6 Ø 1,3 Pliers
Flush

Ÿ Relieved cutting edge for easy access.

4.528 Inch / 115 mm
2.399 oz. / 68 g
40°
Tweezers

Model Cut A B C D Max. cutting capability in mm
Inch mm Inch mm Inch mm Inch mm Hard wire Medium Copper
hardness wire
572E 0.236 6 0.433 11 0.236 6 0.827 21 - Ø 0,6 Ø 1,3
Flush

Ÿ Suitable for working on printed-circuit
boards, component connections, can be
used in both 90° and 180° applications Special tools
4.528 Inch / 115 mm
2.399 oz. / 68 g
40°

Model Cut A B C D Max. cutting capability in mm
Inch mm Inch mm Inch mm Inch mm Hard wire Medium Copper
hardness wire
582E 0.236 6 0.433 11 0.236 6 1.024 26 - Ø 0,6 Ø 1,3 Kits
Flush

Precision Tools 323
