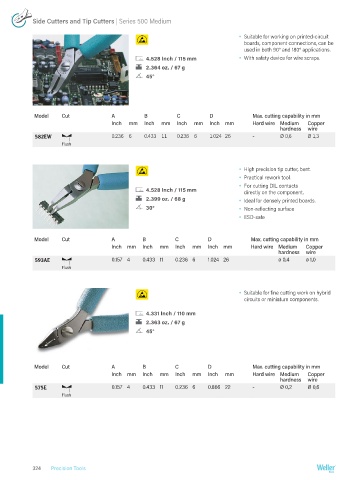

Page 324 - weller

Side Cutters and Tip Cutters | Series 500 Medium

Ÿ Suitable for working on printed-circuit
boards, component connections, can be
used in both 90° and 180° applications.
4.528 Inch / 115 mm Ÿ With safety device for wire scraps.
2.364 oz. / 67 g
45°

Model Cut A B C D Max. cutting capability in mm
Inch mm Inch mm Inch mm Inch mm Hard wire Medium Copper
hardness wire
582EW 0.236 6 0.433 11 0.236 6 1.024 26 - Ø 0,6 Ø 1,3
Flush

Ÿ High precision tip cutter, bent.
Ÿ Practical rework tool.
Ÿ For cutting DIL contacts
4.528 Inch / 115 mm directly on the component.
2.399 oz. / 68 g Ÿ Ideal for densely printed boards.
30° Ÿ Non-reflecting surface
Ÿ ESD-safe

Model Cut A B C D Max. cutting capability in mm
Inch mm Inch mm Inch mm Inch mm Hard wire Medium Copper
hardness wire
593AE 0.157 4 0.433 11 0.236 6 1.024 26 ø 0,4 ø 1,0
Flush

Ÿ Suitable for fine cutting work on hybrid
circuits or miniature components.

4.331 Inch / 110 mm
2.363 oz. / 67 g
45°

Model Cut A B C D Max. cutting capability in mm
Inch mm Inch mm Inch mm Inch mm Hard wire Medium Copper
hardness wire
575E 0.157 4 0.433 11 0.236 6 0.866 22 - Ø 0,2 Ø 0,6
Flush

324 Precision Tools
