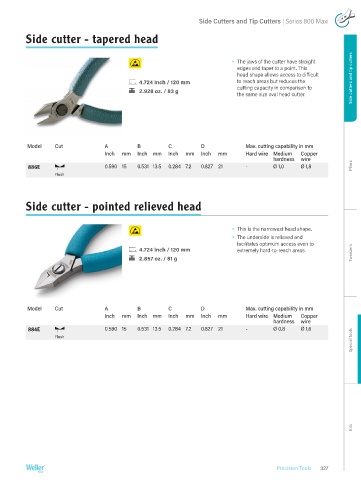

Page 327 - weller

Side Cutters and Tip Cutters | Series 800 Maxi

Side cutter - tapered head

Ÿ The jaws of the cutter have straight
edges and taper to a point. This
head shape allows access to difficult
4.724 Inch / 120 mm to reach areas but reduces the Side cutters and tip cutters
2.928 oz. / 83 g cutting capacity in comparison to
the same size oval head cutter.

Model Cut A B C D Max. cutting capability in mm
Inch mm Inch mm Inch mm Inch mm Hard wire Medium Copper
hardness wire
886E 0.590 15 0.531 13.5 0.284 7.2 0.827 21 - Ø 1,0 Ø 1,8 Pliers
Flush

Side cutter - pointed relieved head

Ÿ This is the narrowest head shape.
Ÿ The underside is relieved and
facilitates optimum access even to
4.724 Inch / 120 mm extremely hard-to-reach areas. Tweezers
2.857 oz. / 81 g

Model Cut A B C D Max. cutting capability in mm
Inch mm Inch mm Inch mm Inch mm Hard wire Medium Copper
hardness wire
884E 0.590 15 0.531 13.5 0.284 7.2 0.827 21 - Ø 0,8 Ø 1,6
Special tools
Flush

Kits

Precision Tools 327
