Side Cutters and Tip Cutters | Tungsten-carbide cutters

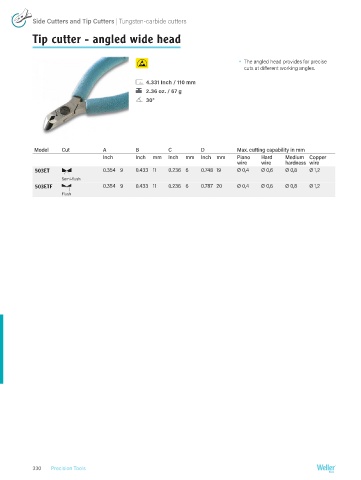

Tip cutter - angled wide head
The angled head provides for precise
cuts at different working angles.
4.331 Inch / 110 mm
2.36 oz. / 67 g
30°
Model Cut A B C D Max. cutting capability in mm
Inch Inch mm Inch mm Inch mm Piano Hard Medium Copper
wire wire hardness wire
503ET 0.354 9 0.433 11 0.236 6 0.748 19 Ø 0,4 Ø 0,6 Ø 0,8 Ø 1,2
Semi-flush
503ETF 0.354 9 0.433 11 0.236 6 0.787 20 Ø 0,4 Ø 0,6 Ø 0,8 Ø 1,2
Flush
330 Precision Tools
