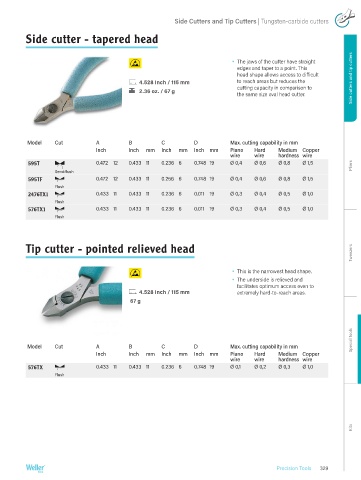

Page 329 - weller

Side Cutters and Tip Cutters | Tungsten-carbide cutters

Side cutter - tapered head

Ÿ The jaws of the cutter have straight
edges and taper to a point. This
head shape allows access to difficult
4.528 Inch / 115 mm to reach areas but reduces the Side cutters and tip cutters
2.36 oz. / 67 g cutting capacity in comparison to
the same size oval head cutter.

Model Cut A B C D Max. cutting capability in mm
Inch Inch mm Inch mm Inch mm Piano Hard Medium Copper
wire wire hardness wire
595T 0.472 12 0.433 11 0.236 6 0.748 19 Ø 0,4 Ø 0,6 Ø 0,8 Ø 1,5 Pliers
Semi-flush
595TF 0.472 12 0.433 11 0.256 6 0.748 19 Ø 0,4 Ø 0,6 Ø 0,8 Ø 1,5
Flush
2476TX1 0.433 11 0.433 11 0.236 6 0.011 19 Ø 0,3 Ø 0,4 Ø 0,5 Ø 1,0
Flush
576TX1 0.433 11 0.433 11 0.236 6 0.011 19 Ø 0,3 Ø 0,4 Ø 0,5 Ø 1,0
Flush

Tip cutter - pointed relieved head Tweezers

Ÿ This is the narrowest head shape.
Ÿ The underside is relieved and
facilitates optimum access even to
4.528 Inch / 115 mm extremely hard-to-reach areas.
67 g

Special tools

Model Cut A B C D Max. cutting capability in mm
Inch Inch mm Inch mm Inch mm Piano Hard Medium Copper
wire wire hardness wire
576TX 0.433 11 0.433 11 0.236 6 0.748 19 Ø 0,1 Ø 0,2 Ø 0,3 Ø 1,0
Flush

Kits

Precision Tools 329
