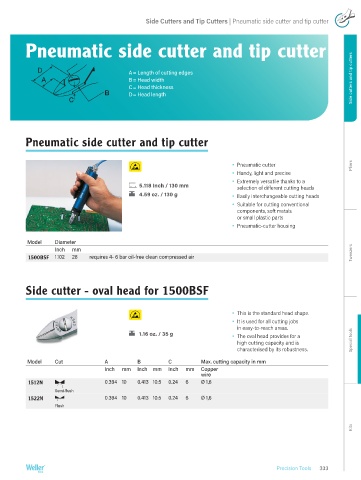

Page 333 - weller
P. 333
Side Cutters and Tip Cutters | Pneumatic side cutter and tip cutter
Pneumatic side cutter and tip cutter
A = Length of cutting edges
B = Head width Side cutters and tip cutters
C = Head thickness
D = Head length
Pneumatic side cutter and tip cutter
Pneumatic cutter Pliers
Handy, light and precise
Extremely versatile thanks to a
5.118 Inch / 130 mm selection of different cutting heads
4.59 oz. / 130 g Easily interchangeable cutting heads
Suitable for cutting conventional
components, soft metals
or small plastic parts
Pneumatic-cutter housing
Model Diameter
Inch mm
1500BSF 1.102 28 requires 4- 6 bar oil-free clean compressed air Tweezers
Side cutter - oval head for 1500BSF
This is the standard head shape.
It is used for all cutting jobs
in easy-to-reach areas.
1.16 oz. / 35 g The oval head provides for a
high cutting capacity and is Special tools
characterised by its robustness.
Model Cut A B C Max. cutting capacity in mm
Inch mm Inch mm Inch mm Copper
wire
1512N 0.394 10 0.413 10.5 0.24 6 Ø 1,6
Semi-flush
1522N 0.394 10 0.413 10.5 0.24 6 Ø 1,6
Flush
Kits
Precision Tools 333
