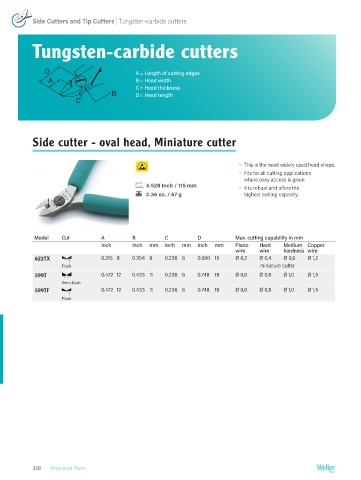

Page 328 - weller
P. 328
Side Cutters and Tip Cutters | Tungsten-carbide cutters
Tungsten-carbide cutters
A = Length of cutting edges
B = Head width
C = Head thickness
D = Head length
Side cutter - oval head, Miniature cutter
This is the most widely used head shape.
Fits for all cutting applications
where easy access is given
4.528 Inch / 115 mm It is robust and offers the
2.36 oz. / 67 g highest cutting capacity.
Model Cut A B C D Max. cutting capability in mm
Inch Inch mm Inch mm Inch mm Piano Hard Medium Copper
wire wire hardness wire
622TX 0.315 8 0.354 9 0.236 6 0.590 15 Ø 0,2 Ø 0,4 Ø 0,6 Ø 1,2
Flush miniature cutter
599T 0.472 12 0.433 11 0.236 6 0.748 19 Ø 0,6 Ø 0,8 Ø 1,0 Ø 1,5
Semi-flush
599TF 0.472 12 0.433 11 0.236 6 0.748 19 Ø 0,6 Ø 0,8 Ø 1,0 Ø 1,5
Flush
