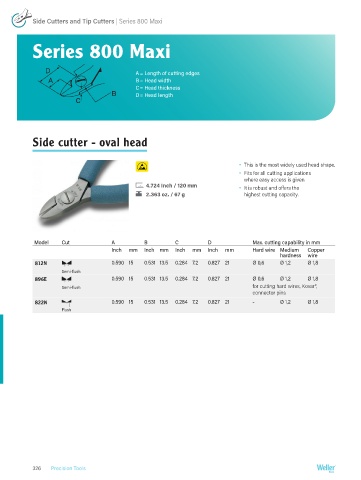

Page 326 - weller

Side Cutters and Tip Cutters | Series 800 Maxi

Series 800 Maxi

A = Length of cutting edges
B = Head width
C = Head thickness
D = Head length

Side cutter - oval head

Ÿ This is the most widely used head shape.
Ÿ Fits for all cutting applications
where easy access is given
4.724 Inch / 120 mm Ÿ It is robust and offers the
2.363 oz. / 67 g highest cutting capacity.

Model Cut A B C D Max. cutting capability in mm
Inch mm Inch mm Inch mm Inch mm Hard wire Medium Copper
hardness wire
812N 0.590 15 0.531 13.5 0.284 7.2 0.827 21 Ø 0,6 Ø 1,2 Ø 1,8
Semi-flush
896E 0.590 15 0.531 13.5 0.284 7.2 0.827 21 Ø 0,6 Ø 1,2 Ø 1,8
Semi-flush for cutting hard wires, Kovar®,
connector pins
822N 0.590 15 0.531 13.5 0.284 7.2 0.827 21 - Ø 1,2 Ø 1,8
Flush

326 Precision Tools
