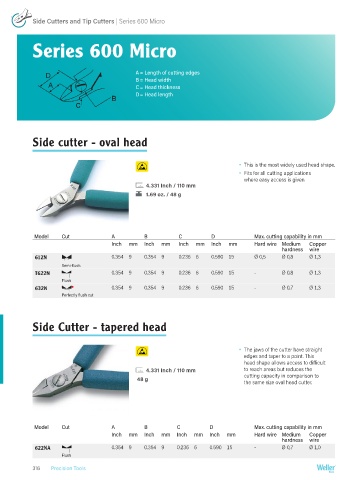

Side Cutters and Tip Cutters | Series 600 Micro

Series 600 Micro

A = Length of cutting edges
B = Head width
C = Head thickness
D = Head length

Side cutter - oval head

Ÿ This is the most widely used head shape.
Ÿ Fits for all cutting applications
where easy access is given
4.331 Inch / 110 mm
1.69 oz. / 48 g

Model Cut A B C D Max. cutting capability in mm
Inch mm Inch mm Inch mm Inch mm Hard wire Medium Copper
hardness wire
612N 0.354 9 0.354 9 0.236 6 0.590 15 Ø 0,5 Ø 0,8 Ø 1,3
Semi-flush
T622N 0.354 9 0.354 9 0.236 6 0.590 15 - Ø 0,8 Ø 1,3
Flush
632N 0.354 9 0.354 9 0.236 6 0.590 15 - Ø 0,7 Ø 1,3
Perfectly flush cut

Side Cutter - tapered head

Ÿ The jaws of the cutter have straight
edges and taper to a point. This
head shape allows access to difficult
4.331 Inch / 110 mm to reach areas but reduces the
48 g cutting capacity in comparison to
the same size oval head cutter.

Model Cut A B C D Max. cutting capability in mm
Inch mm Inch mm Inch mm Inch mm Hard wire Medium Copper
hardness wire
622NA 0.354 9 0.354 9 0.236 6 0.590 15 - Ø 0,7 Ø 1,0
Flush

316 Precision Tools
