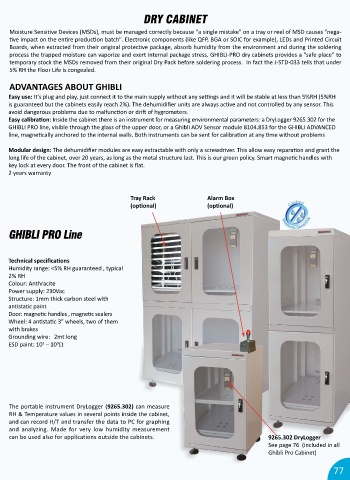

DRY CABINET

Moisture Sensi ve Devices (MSDs), must be managed correctly because "a single mistake" on a tray or reel of MSD causes "nega-

ve impact on the en re produc on batch". Electronic components (like QFP, BGA or SOIC for example), LEDs and Printed Circuit

Boards, when extracted from their original protec ve package, absorb humidity from the environment and during the soldering

process the trapped moisture can vaporize and exert internal package stress. GHIBLI-PRO dry cabinets provides a "safe place" to
temporary stock the MSDs removed from their original Dry Pack before soldering process. In fact the J-STD-033 tells that under
5% RH the Floor Life is congealed.
ADVANTAGES ABOUT GHIBLI
Easy use: It’s plug and play, just connect it to the main supply without any se ngs and it will be stable at less than 5%RH (5%RH

is guaranteed but the cabinets easily reach 2%). The dehumidifier units are always ac ve and not controlled by any sensor. This
avoid dangerous problems due to malfunc on or dri of hygrometers.

Easy calibra on: Inside the cabinet there is an instrument for measuring environmental parameters: a DryLogger 9265.302 for the
GHIBLI PRO line, visible through the glass of the upper door, or a Ghibli ADV Sensor module 8104.853 for the GHIBLI ADVANCED

line, magne cally anchored to the internal walls. Both instruments can be sent for calibra on at any me without problems

Modular design: The dehumidifier modules are easy extractable with only a screwdriver. This allow easy repara on and grant the

long life of the cabinet, over 20 years, as long as the metal structure last. This is our green policy. Smart magne c handles with
key lock at every door. The front of the cabinet is fl at.
2 years warranty
Tray Rack Alarm Box

(op onal) (op onal)

GHIBLI PRO Line

Technical specifi ca ons
Humidity range: <5% RH guaranteed , typical
2% RH
Colour: Anthracite
Power supply: 230Vac
Structure: 1mm thick carbon steel with

an sta c paint

Door: magne c handles , magne c sealers

Wheel: 4 an sta c 3” wheels, two of them

with brakes
Grounding wire: 2mt long
ESD paint: 10 – 10 Ω
3
9

The portable instrument DryLogger (9265.302) can measure
RH & Temperature values in several points inside the cabinet,
and can record H/T and transfer the data to PC for graphing
and analyzing. Made for very low humidity measurement
can be used also for applications outside the cabinets. 9265.302 DryLogger
See page 76 (included in all
Ghibli Pro Cabinet)
