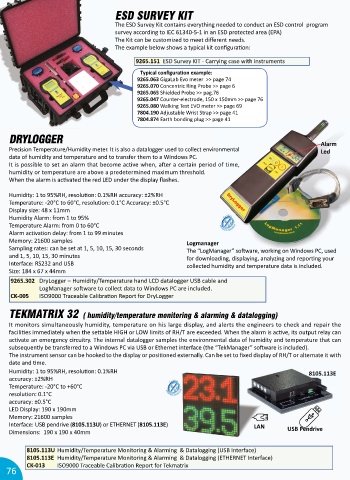

Page 76 - ITECO Catalogue 2024

ESD SURVEY KIT

The ESD Survey Kit contains everything needed to conduct an ESD control program
survey according to IEC 61340-5-1 in an ESD protected area (EPA)

The Kit can be customized to meet different needs.

The example below shows a typical kit configura on:

9265.151 ESD Survey KIT - Carrying case with instruments
Typical configura on example:

9265.063 GigaLab Evo meter >> page 74
9265.070 Concentric Ring Probe >> page 6
9265.065 Shielded Probe >> pag.76
9265.047 Counter-electrode, 150 x 150mm >> page 76
9265.080 Walking Test EVO meter >> page 69
7804.190 Adjustable Wrist Strap >> page 41
7804.874 Earth bonding plug >> page 41

DRYLOGGER
Alarm
Precision Temperature/ Humidity meter. It is also a datalogger used to collect environmental Led
data of humidity and temperature and to transfer them to a Windows PC.
It is possible to set an alarm that become ac ve when, a er a certain period of time,

humidity or temperature are above a predetermined maximum threshold.

When the alarm is ac vated the red LED under the display flashes.
Humidity: 1 to 95%RH, resolu on: 0.1%RH accuracy: ±2%RH

Temperature: -20°C to 60°C, resolu on: 0.1°C Accuracy: ±0.5°C
Display size: 48 x 11mm
Humidity Alarm: from 1 to 95%
Temperature Alarm: from 0 to 60°C
Alarm ac va on delay: from 1 to 99 minutes

Memory: 21600 samples Logmanager
Sampling rates: can be set at 1, 5, 10, 15, 30 seconds The “LogManager” so ware, working on Windows PC, used

and 1, 5, 10, 15, 30 minutes for downloading, displaying, analyzing and repor ng your

Interface: RS232 and USB collected humidity and temperature data is included.
Size: 184 x 67 x 44mm
9265.302 DryLogger – Humidity/Temperature hand LCD datalogger USB cable and
LogManager so ware to collect data to Windows PC are included.

CK-005 ISO9000 Traceable Calibra on Report for DryLogger
TEKMATRIX 32 ( humidity/temperature monitoring & alarming & datalogging)

It monitors simultaneously humidity, temperature on his large display, and alerts the engineers to check and repair the
facili es immediately when the se able HIGH or LOW limits of RH/T are exceeded. When the alarm is ac ve, its output relay can

ac vate an emergency circuitry. The internal datalogger samples the environmental data of humidity and temperature that can

subsequently be transferred to a Windows PC via USB or Ethernet interface (the “TekManager” so ware is included).

The instrument sensor can be hooked to the display or posi oned externally. Can be set to fixed display of RH/T or alternate it with

date and me.
Humidity: 1 to 95%RH, resolu on: 0.1%RH 8105.113E

1
3E
8
.11
05
accuracy: ±2%RH
Temperature: -20°C to +60°C
resolu on: 0.1°C

accuracy: ±0.5°C
LED Display: 190 x 190mm
Memory: 21600 samples
Interface: USB pendrive (8105.113U) or ETHERNET (8105.113E) LAN
A
L
N
N
Dimensions: 190 x 190 x 40mm USB Pendrive
8105.113U Humidity/Temperature Monitoring & Alarming & Datalogging (USB Interface)
8105.113E Humidity/Temperature Monitoring & Alarming & Datalogging (ETHERNET Interface)
CK-013 ISO9000 Traceable Calibra on Report for Tekmatrix
