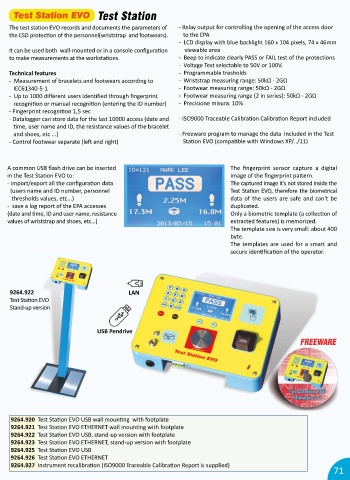

Test Station

The test sta on EVO records and documents the parameters of - Relay output for controlling the opening of the access door

the ESD protec on of the personnel(wriststrap and footwears). to the EPA
- LCD display with blue backlight 160 x 104 pixels, 74 x 46mm
It can be used both wall-mounted or in a console configura on viewable area

to make measurements at the worksta ons. - Beep to indicate clearly PASS or FAIL test of the protec ons
- Voltage Test selectable to 50V or 100V.
Technical features - Programmable tresholds
- Measurement of bracelets and footwears according to - Wriststrap measuring range: 50kΩ - 2GΩ
IEC61340-5-1 - Footwear measuring range: 50kΩ - 2GΩ

- Up to 1000 different users iden fied through fingerprint - Footwear measuring range (2 in series): 50kΩ - 2GΩ

recogni on or manual recogni on (entering the ID number) - Precisione misura: 10%

- Fingerprint recogni on 1,5 sec

- Datalogger can store data for the last 10000 access (date and - ISO9000 Traceable Calibra on Calibra on Report included

me, user name and ID, the resistance values of the bracelet
and shoes, etc ...) - Freeware program to manage the data included in the Test

- Control footwear separate (le and right) Sta on EVO (compa ble with Windows XP/../11)
A common USB flash drive can be inserted The fingerprint sensor capture a digital

in the Test Sta on EVO to: image of the fingerprint pa ern.

- import/export all the configura on data The captured image it's not stored inside the

(users name and ID number, personnel Test Sta on EVO, therefore the biometrical

thresholds values, etc...) data of the users are safe and can't be
- save a log report of the EPA accesses duplicated.

(date and me, ID and user name, resistance Only a biometric template (a collec on of
values of wriststrap and shoes, etc...) extracted features) is memorized.
The template size is very small: about 400
byte.
The templates are used for a smart and

secure iden fi ca on of the operator.
9264.922 L LAN
AN
Test Sta on EVO

Stand-up version
USB Pendrive
FREEWARE

9264.920 Test Sta on EVO USB wall moun ng with footplate
9264.921 Test Sta on EVO ETHERNET wall moun ng with footplate
9264.922 Test Sta on EVO USB, stand-up version with footplate
9264.923 Test Sta on EVO ETHERNET, stand-up version with footplate
9264.925 Test Sta on EVO USB
9264.926 Test Sta on EVO ETHERNET
9264.927 Instrument recalibra on (ISO9000 Traceable Calibra on Report is supplied)
