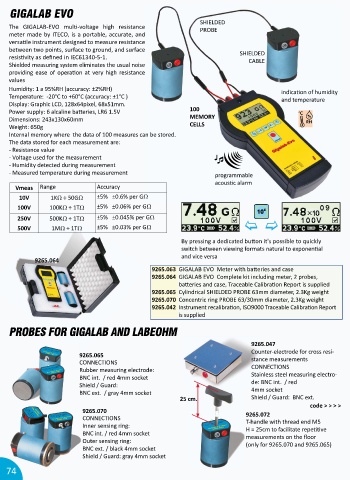

GIGALAB EVO
SHIELDED

The GIGALAB-EVO mul -voltage high resistance PROBE
meter made by ITECO, is a portable, accurate, and

versa le instrument designed to measure resistance
between two points, surface to ground, and surface SHIELDED

resis vity as defined in IEC61340-5-1. CABLE

Shielded measuring system eliminates the usual noise
providing ease of opera on at very high resistance

values
Humidity: 1 a 95%RH (accuracy: ±2%RH) indica on of humidity

Temperature: -20°C to +60°C (accuracy: ±1°C ) and temperature
Display: Graphic LCD, 128x64pixel, 68x51mm.
100

Power supply: 6 alcaline ba eries, LR6 1.5V 1 00
MEMORY
Dimensions: 243x130x60mm M EM O RY
CELLS
Weight: 650g C ELL S
Internal memory where the data of 100 measures can be stored.
The data stored for each measurement are:
- Resistance value
- Voltage used for the measurement
- Humidity detected during measurement
- Measured temperature during measurement programmable
acous c alarm

Vmeas Range Accuracy
10V 1KΩ ÷ 50GΩ ±5% ±0.6% per GΩ
100V 100KΩ ÷ 1TΩ ±5% ±0.06% per GΩ
250V 500KΩ ÷ 1TΩ ±5% ±0.045% per GΩ
500V 1MΩ ÷ 1TΩ ±5% ±0.03% per GΩ
By pressing a dedicated bu on it's possible to quickly

switch between viewing formats natural to exponen al
and vice versa
9265.064
9265.063 GIGALAB EVO Meter with ba eries and case

9265.064 GIGALAB EVO Complete kit including meter, 2 probes,

ba eries and case, Traceable Calibra on Report is supplied

9265.065 Cylindrical SHIELDED PROBE 63mm diameter, 2.3Kg weight
9265.070 Concentric ring PROBE 63/30mm diameter, 2.3Kg weight

9265.042 Instrument recalibra on, ISO9000 Traceable Calibra on Report
is supplied
PROBES FOR GIGALAB AND LABEOHM
65.047
9265.047
926
Counter-electrode for cross resi-
9265.065
9265.065
92 stance measurements
CONNECTIONS CONNECTIONS
Rubber measuring electrode: Stainless steel measuring electro-
BNC int. / red 4mm socket de: BNC int. / red
Shield / Guard: 4mm socket
BNC ext. / gray 4mm socket
25 c Shield / Guard: BNC ext.
25 cm.m.
code > > > >
code > > > >
.
0
9265.070
9265
0
7
.
72
0
9265
CONNECTIONS 9265.072
T-handle with thread end M5
Inner sensing ring: H = 25cm to facilitate repe ve
BNC int. / red 4mm socket measurements on the floor

Outer sensing ring: (only for 9265.070 and 9265.065)
BNC ext. / black 4mm socket
Shield / Guard: gray 4mm socket
