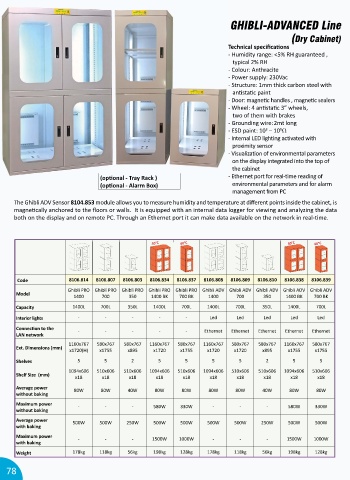

GHIBLI-ADVANCED Line

(Dry Cabinet)

Technical specifi ca ons
- Humidity range: <5% RH guaranteed ,
typical 2% RH
- Colour: Anthracite
- Power supply: 230Vac
- Structure: 1mm thick carbon steel with
an sta c paint

- Door: magne c handles , magne c sealers

- Wheel: 4 an sta c 3” wheels,

two of them with brakes
- Grounding wire: 2mt long
9
3
- ESD paint: 10 – 10 Ω
- Internal LED lighting activated with
proximity sensor
- Visualization of environmental parameters
on the display integrated into the top of
the cabinet
(op onal - Tray Rack ) - Ethernet port for real-time reading of

(op onal - Alarm Box) environmental parameters and for alarm
management from PC
The Ghibli ADV Sensor 8104.853 module allows you to measure humidity and temperature at different points inside the cabinet, is

magne cally anchored to the floors or walls. It is equipped with an internal data logger for viewing and analyzing the data

both on the display and on remote PC. Through an Ethernet port it can make data available on the network in real- me.

40°C 40°C 40°C 40°C 40°C 40°C 40°C
40°C

Code 8106.814 8106.807 8106.803 8106.834 8106.837 8106.808 8106.809 8106.810 8106.838 8106.839
Ghibli PRO Ghibli PRO Ghibli PRO Ghibli PRO Ghibli PRO Ghibli ADV Ghibli ADV Ghibli ADV Ghibli ADV Ghibli ADV
Model
1400 700 350 1400 BK 700 BK 1400 700 350 1400 BK 700 BK
Capacity 1400L 700L 350L 1400L 700L 1400L 700L 350L 1400L 700L
Interior lights - - - - - Led Led Led Led Led
Connec on to the - - - - - Ethernet Ethernet Ethernet Ethernet Ethernet

LAN network
1160x767 580x767 580x767 1160x767 580x767 1160x767 580x767 580x767 1160x767 580x767
Ext. Dimensions (mm)
x1720(H) x1755 x895 x1720 x1755 x1720 x1720 x895 x1755 x1755
Shelves 5 5 2 5 5 5 5 2 5 5
1094x606 510x606 510x606 1094x606 510x606 1094x606 510x606 510x606 1094x606 510x606
Shelf Size (mm)
x18 x18 x18 x18 x18 x18 x18 x18 x18 x18
Average power 80W 80W 40W 80W 80W 80W 80W 40W 80W 80W
without baking
Maximum power - - - 580W 330W - - - 580W 330W
without baking
Average power 500W 500W 250W 500W 500W 500W 500W 250W 500W 500W
with baking
Maximum power - - - 1500W 1000W - - - 1500W 1000W
with baking
Weight 178kg 118kg 56kg 198kg 128kg 178kg 118kg 56kg 198kg 128kg
