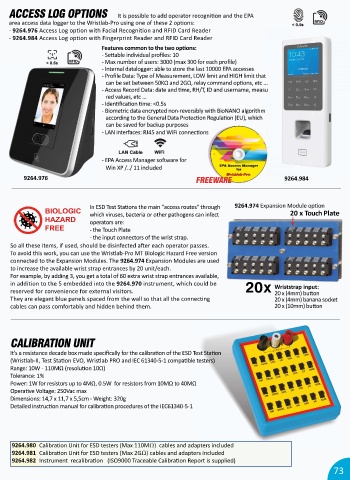

ACCESS LOG OPTIONS It is possible to add operator recogni on and the EPA

area access data logger to the Wristlab-Pro using one of these 2 op ons:
- 9264.976 Access Log option with Facial Recognition and RFID Card Reader
- 9264.984 Access Log option with Fingerprint Reader and RFID Card Reader
Features common to the two op ons:

- Se able individual profiles: 10

- Max number of users: 3000 (max 300 for each profile)

- Internal datalogger: able to store the last 10000 EPA accesses

- Profile Data: Type of Measurement, LOW limit and HIGH limit that
can be set between 50KΩ and 2GΩ, relay command op ons, etc ...

- Access Record Data: date and me, RH/T, ID and username, measu

red values, etc ...

- Iden fi ca on me: <0.5s
- Biometric data encrypted non-reversibly with BioNANO algorithm
according to the General Data Protec on Regula on (EU), which

can be saved for backup purposes

- LAN interfaces: RJ45 and WiFi connec ons
- EPA Access Manager so ware for

Win XP /../ 11 included
9264.976 FREEWARE 9264.984

In ESD Test Sta ons the main "access routes" through 9264.974 Expansion Module op on

which viruses, bacteria or other pathogens can infect 20 x Touch Plate
operators are:
- the Touch Plate
- the input connectors of the wrist strap.

So all these items, if used, should be disinfected a er each operator passes.
To avoid this work, you can use the Wristlab-Pro MT Biologic Hazard Free version
connected to the Expansion Modules. The 9264.974 Expansion Modules are used
to increase the available wrist strap entrances by 20 unit/each.
For example, by adding 3, you get a total of 60 extra wrist strap entrances available,
in addition to the 5 embedded into the 9264.970 instrument, which could be 20x Wriststrap input:
reserved for convenience for external visitors. 20 x (4mm) bu on
They are elegant blue panels spaced from the wall so that all the connec ng 20 x (4mm) banana socket
cables can pass comfortably and hidden behind them. 20 x (10mm) bu on

CALIBRATION UNIT

It's a resistance decade box made specifically for the calibra on of the ESD Test Sta on

(Wristlab-II, Test Sta on EVO, Wristlab PRO and IEC 61340-5-1 compa ble testers)

Range: 10W - 110MΩ (resolu on 10Ω)
Tolerance: 1%
Power: 1W for resistors up to 4MΩ, 0.5W for resistors from 10MΩ to 40MΩ

Opera ve Voltage: 250Vac max
Dimensions: 14,7 x 11,7 x 5,5cm - Weight: 320g

Detailed instruc on manual for calibra on procedures of the IEC61340-5-1

9264.980 Calibra on Unit for ESD testers (Max 110MΩ) cables and adapters included
9264.981 Calibra on Unit for ESD testers (Max 2GΩ) cables and adapters included
9264.982 Instrument recalibra on (ISO9000 Traceable Calibra on Report is supplied)
