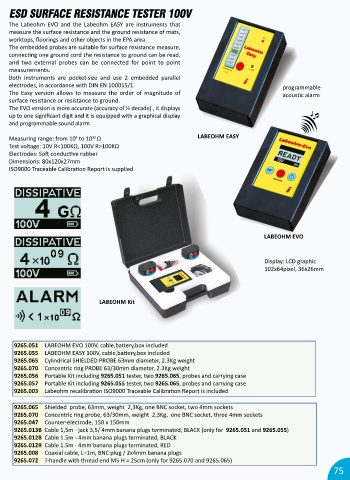

Page 75 - ITECO Catalogue 2024

ESD SURFACE RESISTANCE TESTER 100V

The Labeohm EVO and the Labeohm EASY are instruments that
measure the surface resistance and the ground resistance of mats,

worktops, floorings and other objects in the EPA area.
The embedded probes are suitable for surface resistance measure,

connec ng one ground cord the resistance to ground can be read,
and two external probes can be connected for point to point
measurements.
Both instruments are pocket-size and use 2 embedded parallel
electrodes, in accordance with DIN EN 100015/1. programmable
The Easy version allows to measure the order of magnitude of acous c alarm

surface resistance or resistance to ground.
The EVO version is more accurate (accuracy of ½ decade) , it displays
up to one significant digit and it is equipped with a graphical display

and programmable sound alarm
12
4
Measuring range: from 10 to 10 Ω LABEOHM EASY
Test voltage: 10V R<100KΩ, 100V R>100KΩ

Electrodes: So conduc ve rubber
Dimensions: 80x120x27mm
ISO9000 Traceable Calibra on Report is supplied

LABEOHM EVO

Display: LCD graphic
102x64pixel, 36x26mm

LABEOHM Kit

9265.051 LABEOHM EVO 100V, cable,ba ery,box included

9265.055 LABEOHM EASY 100V, cable,ba ery,box included
9265.065 Cylindrical SHIELDED PROBE 63mm diameter, 2.3Kg weight
9265.070 Concentric ring PROBE 63/30mm diameter, 2.3Kg weight
9265.056 Portable Kit including 9265.051 tester, two 9265.065, probes and carrying case
9265.057 Portable Kit including 9265.055 tester, two 9265.065, probes and carrying case

9265.003 Labeohm recalibra on ISO9000 Traceable Calibra on Report is included
9265.065 Shielded probe, 63mm, weight 2,3Kg, one BNC socket, two 4mm sockets
9265.070 Concentric ring probe, 63/30mm, weight 2,3Kg, one BNC socket, three 4mm sockets
9265.047 Counter-electrode, 150 x 150mm
9265.013B Cable 1,5m - jack 3,5/ 4mm banana plugs terminated, BLACK (only for 9265.051 and 9265.055)
9265.012B Cable 1.5m - 4mm banana plugs terminated, BLACK
9265.012R Cable 1.5m - 4mm banana plugs terminated, RED
9265.008 Coaxial cable, L=1m, BNC plug / 2x4mm banana plugs
9265.072 T-handle with thread end M5 H = 25cm (only for 9265.070 and 9265.065)
